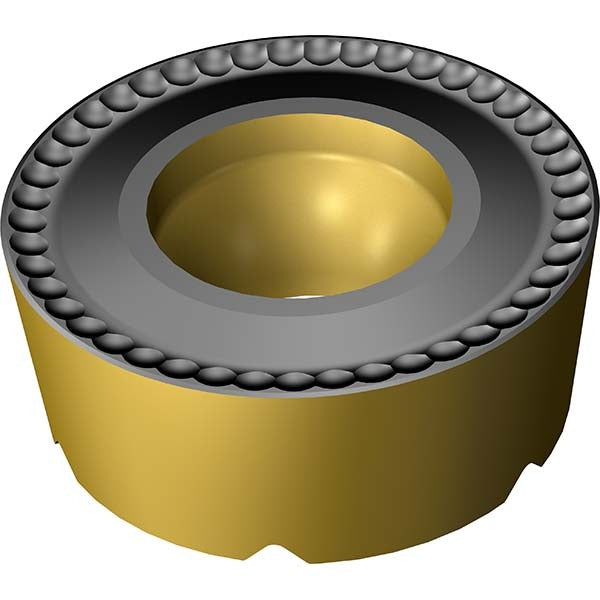

Sandvik Coromant 7960648 RCMT1204 MP-H7 4425 Turning Insert

Product Description

The SANDVIK COROMANT 7960648 is a round turning insert from the CoroTurn 107 series, designed for single-point turning operations on CNC lathes and turning centers. It carries manufacturer grade 4425 and features a CVD-applied multilayer coating of TiCN, Al2O3, and TiN for wear resistance and thermal protection during cutting. The insert has a 12 mm inscribed circle, a 4.76 mm thickness, and a neutral hand orientation. It is suited for machining cast iron (ISO K) as a primary application and steel (ISO P) as a secondary application. This insert is installed by machinists and CNC tooling technicians in production and job-shop environments.

The 7960648 fits CoroTurn 107 toolholders that accept RCMT-style round inserts with a clamp and screw holding method. Its round shape and C clearance angle make it a versatile choice for profiling, contour turning, and copy turning where a full 360-degree cutting edge is beneficial. It is appropriate for both finishing and semi-finishing passes on cast iron and steel workpieces. The neutral hand designation means it can be used in both right-hand and left-hand cutting directions depending on holder orientation.

Key Features

• CVD multilayer coating — TiCN, Al2O3, TiN — provides heat and abrasion resistance
• Round insert shape (RCMT) delivers a full 360-degree usable cutting edge
• 12 mm inscribed circle with 4.76 mm insert thickness for rigid, stable seating
• Neutral hand orientation compatible with right-hand and left-hand toolholders
• Grade 4425 optimized for ISO K (cast iron) primary and ISO P (steel) secondary applications
• Clamp and screw holding method for positive, repeatable insert location

Compatibility

Designed for use with SANDVIK COROMANT CoroTurn 107 toolholders accepting RCMT 12 04 style round inserts. ISO code RCMT 12 04 MP-H7 4425 identifies the full insert designation for toolholder and catalog cross-reference.

Installation Notes

Insert replacement should be performed with the machine in a locked-out, de-energized state per applicable lockout/tagout procedures. Use the correct Torx or hex key to the toolholder manufacturer's specified procedure when seating the clamping screw — do not overtighten. Inspect the insert pocket seat for chips or contamination before seating the new insert. Dispose of worn carbide inserts in accordance with local regulations for carbide and heavy-metal materials.
