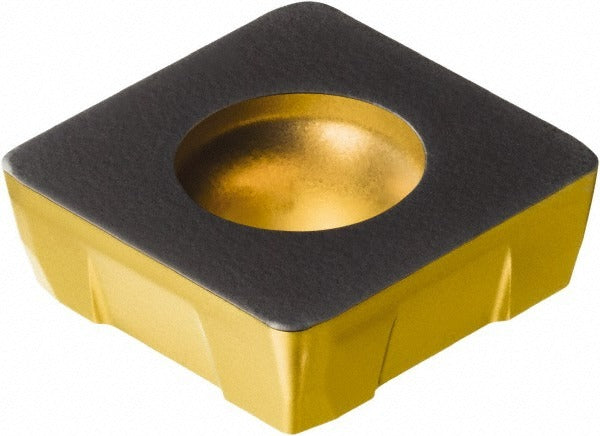

Sandvik Coromant 7564462 Milling Insert Solid Carbide R210

Product Description

The SANDVIK COROMANT 7564462 is a square, single-sided milling insert designed for indexable face and shoulder milling operations. Built from solid carbide with a CVD-applied multilayer coating of TiCN, Al2O3, and TiN, this insert carries manufacturer grade 4340 and is classified under the R210 cutter series. It features a positive rake geometry with a corner-rounded cutting edge style, a 1.00 mm (0.0394 inch) corner radius, and four usable cutting edges per insert. The screw-mounted, right-hand insert measures 0.1875 inches thick with an inscribed circle of 0.5709 inches, making it a compact, high-performance option for productive metal removal in demanding milling applications.

This insert is suited for milling steel, stainless steel, and cast iron, covering ISO material groups P, M, and K at grades P40, M40, and K40 respectively. It is intended for use by machinists and CNC tooling professionals operating R210-series milling cutters in production and job-shop environments, both light and heavy-duty. The PM chip breaker geometry supports controlled chip formation across a range of cutting conditions. Maximum depth of cut reaches 0.0787 inches, making it appropriate for moderate stock removal and finish passes alike.

Key Features

• Solid carbide substrate with CVD multilayer coating: TiCN, Al2O3, TiN for wear and heat resistance
• Square insert shape with 90-degree included angle and corner-rounded cutting edge
• Four cutting edges per insert for extended tool life and lower cost per edge
• Positive rake angle with PM chip breaker for controlled chip evacuation
• Right-hand, screw-held single-sided insert compatible with R210-series cutter bodies
• Conforms to ANSI and ISO standards; ANSI/ISO code R210-14 05 12M-PM 4340

Compatibility

Designed for use with R210-series indexable milling cutter bodies as specified by SANDVIK COROMANT. Insert size code 140512 corresponds to ANSI/ISO designation R210-14 05 12M-PM 4340. Verify cutter body pocket geometry and insert seat dimensions before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully powered down and locked out before changing inserts. Seat the insert firmly against the pocket locating surfaces and torque the clamping screw to the cutter body manufacturer specification. Inspect the insert seat and clamping screw for wear or debris before seating a new insert to prevent premature edge failure.
