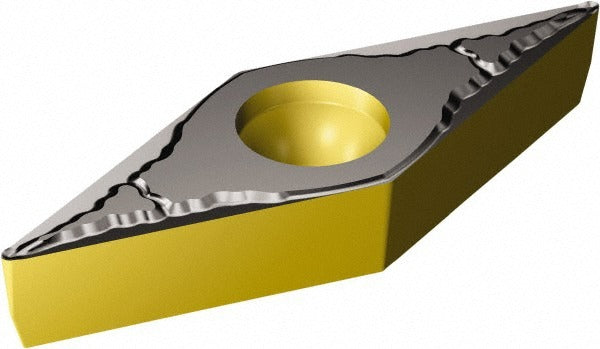

Sandvik Coromant 7231487 VBMT332-MM 2220 Turning Insert

Product Description

The SANDVIK COROMANT 7231487 is a VBMT-style indexable turning insert engineered for precision metal cutting in CNC lathe and turning center applications. Part of the CoroTurn 107 series, it is manufactured from solid carbide and finished with a CVD-applied multilayer coating of TiCN, Al2O3, and TiN. This combination delivers strong wear resistance and thermal stability during continuous and semi-interrupted cuts. The insert features a 35-degree diamond shape with a neutral hand orientation, a 3/8 inch inscribed circle, and a 1/32 inch corner radius. The MM chip breaker geometry is optimized for stainless steel machining at moderate to high cutting parameters. It is installed by machinists and CNC operators in production and job shop environments.

This insert is designed primarily for turning stainless steel workpiece materials, corresponding to ISO material group M. The CoroTurn 107 platform uses a screw-clamping holding method, making this insert suitable for external turning, facing, and copying operations where controlled chip formation and surface finish consistency are required. The 35-degree included angle provides good access to tight profiles while maintaining adequate cutting edge strength for austenitic and ferritic stainless alloys.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for wear resistance and thermal protection
• MM chip breaker geometry optimized for stainless steel (ISO group M) cutting
• 35-degree diamond insert shape for profiling and finishing passes
• 1/32 inch (0.0313 inch) corner radius for controlled surface finish
• Screw-clamp insert holding via CoroTurn 107 toolholder system
• 2 usable cutting edges per insert

Compatibility

Designed for use in CoroTurn 107 series toolholders that accept VBMT-style inserts with a B clearance code, M tolerance code, and 4.40 mm (0.1732 inch) hole diameter. ISO code: VBMT 16 04 08-MM 2220.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate Torx or hex key driver specified for CoroTurn 107 clamping screws and do not overtighten, as carbide inserts are brittle and will crack under excess clamping force. Inspect the insert pocket seat and clamping screw for wear or debris before seating a new insert.
