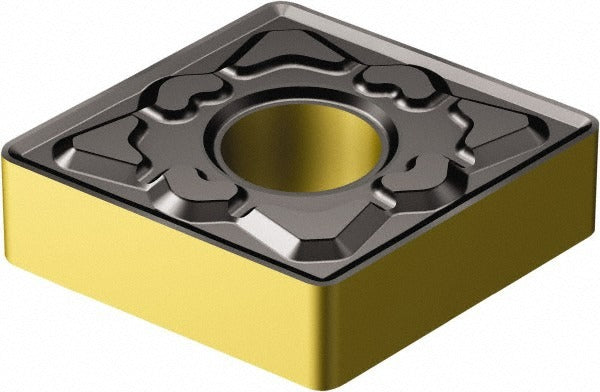

Sandvik Coromant 7231326 CNMG432-MM 2220 Turning Insert

Product Description

The SANDVIK COROMANT 7231326 is a CVD-coated carbide turning insert in the CNMG432-MM configuration, part of the T-Max P series. It carries a multilayer TiCN, Al2O3, and TiN coating applied by CVD for wear resistance and thermal stability during continuous and interrupted cuts. The insert features an 80-degree diamond shape with a neutral hand orientation, a 1/2-inch inscribed circle, and a 1/32-inch corner radius. The MM chip breaker geometry is engineered for effective chip control. This insert is installed by CNC machinists and toolroom technicians on turning centers and lathes.

This insert is designed primarily for turning stainless steel and other ISO M-group workpiece materials, where edge toughness and coating integrity are critical. The CNMG style seats in standard CNMG-compatible toolholders using clamp and pin holding methods, making it a direct fit for a wide range of production turning applications. The 2220 grade provides a balance of toughness and wear resistance suited to moderate cutting conditions on austenitic and ferritic stainless alloys.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for thermal and abrasion resistance
• 80-degree diamond insert shape (ISO shape code C) with neutral hand
• MM chip breaker geometry for stainless steel chip control
• 1/2-inch (12.70 mm) inscribed circle with 1/32-inch (0.79 mm) corner radius
• 4 cutting edges per insert for cost-effective use
• Clamp and pin holding method compatible with standard CNMG toolholders

Compatibility

Designed for use in CNMG-style toolholders that accept clamp and pin holding. ISO code CNMG 12 04 08-MM 2220. Compatible with turning centers and lathes set up for CNMG432 inserts. Verify toolholder pocket dimensions before installation.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician on a lathe or CNC turning center. Power down and lock out the machine before seating or replacing inserts. Use the appropriate torque wrench and clamp screw specified by the toolholder manufacturer — do not overtighten the clamp screw. Inspect the insert pocket and seating surface for chips or debris before installing a new edge.
