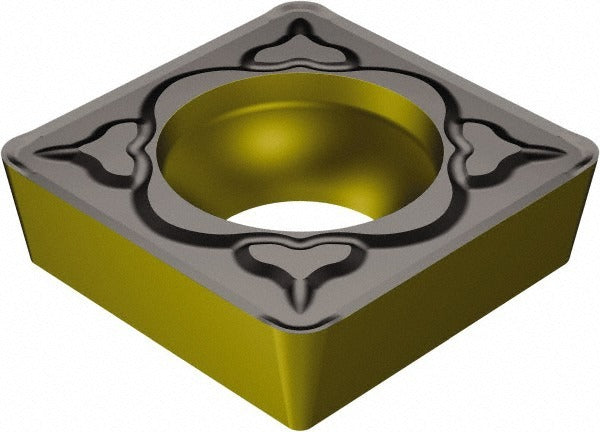

Sandvik Coromant 6868272 Turning Insert SCMT32.51KM

Product Description

The SANDVIK COROMANT 6868272 is an SCMT-style indexable turning insert designed for external turning and profiling operations on CNC lathes and turning centers. Part of the CoroTurn 107 series, this insert features a square shape with a 90-degree included angle, a 3/8-inch inscribed circle, and a 1/64-inch (0.0157-inch) corner radius. The substrate is solid carbide with a multilayer TiCN, Al2O3, and TiN coating applied via CVD. The KM chip breaker geometry and 3225 grade make this insert well-suited for stable, productive cuts in cast iron. It is installed by licensed machinists and tooling specialists in production and job-shop environments.

This insert is primarily intended for machining cast iron workpieces in light to medium turning applications. The CoroTurn 107 series is designed for external turning where the insert is held by a screw-down clamping method. The neutral hand orientation allows use in both right-hand and left-hand toolholders that accept SCMT-style inserts. The 3225 grade with multilayer coating resists heat and flank wear during continuous and mildly interrupted cuts in ferrous materials.

Key Features

• Multilayer TiCN, Al2O3, and TiN CVD coating for wear resistance in cast iron applications
• KM chip breaker geometry optimized for controlled chip formation during turning
• 4 usable cutting edges per insert for extended tooling economy
• Screw-down insert holding method for positive, repeatable clamping in CoroTurn 107 toolholders
• Maximum depth of cut of 0.3594 inches (9.13 mm) for medium material removal
• No wiper edge — standard corner radius geometry for general turning profiles

Compatibility

Designed for use with CoroTurn 107 series screw-clamping toolholders that accept SCMT insert style with clearance code C and tolerance code M. ISO designation SCMT 09 T3 04-KM 3225 identifies compatible toolholder pockets.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct Torx or hex key specified by the toolholder manufacturer when tightening the clamping screw — avoid overtightening, which can crack the insert or damage the pocket seat. Confirm seating of the insert in the pocket before resuming cutting operations.
