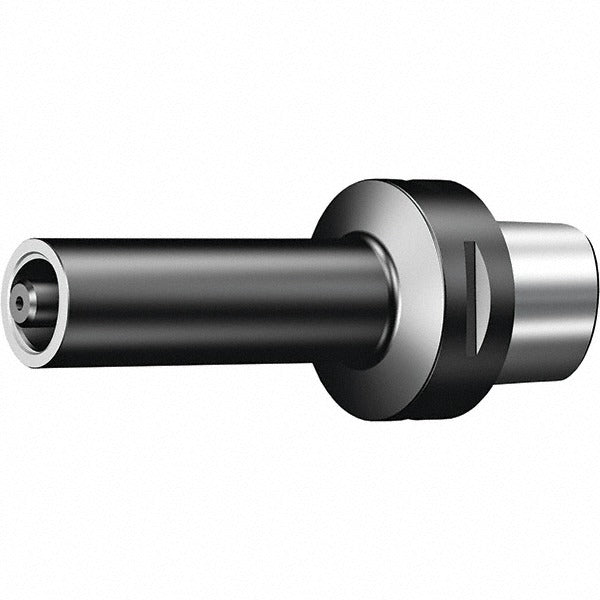

Sandvik Coromant 6763495 Modular Toolholding Adapter

Product Description

The SANDVIK COROMANT 6763495 is a modular tool holding system adapter designed for use in precision machining setups. With a body diameter of 2.4803 inches (63.00 mm), this adapter serves as an interface component within modular tooling assemblies, connecting cutting units or extensions to machine spindles or turrets. At 5.85 pounds, the adapter is built for rigidity and stability during heavy-duty cutting operations. Machinists and tooling specialists install this component as part of a modular tooling system to enable quick changeover and repeatable positioning without sacrificing runout performance.

This adapter is suited for CNC machining centers, turning centers, and similar machine tool platforms that use modular tooling architecture. It is appropriate for both production and job-shop environments where tool change efficiency and positional accuracy are priorities. The 6763495 is packaged individually and is intended for professional installation by qualified tooling technicians or machinists familiar with modular toolholding systems and the specific machine tool interface requirements of their equipment.

Key Features

• Body diameter of 2.4803 inches (63.00 mm) for precise modular tooling interface fitment
• Part of a modular tool holding system enabling flexible, repeatable tool assembly configurations
• Weighs 5.85 pounds, reflecting solid construction for vibration damping and rigidity
• Individually packaged for straightforward inventory and tool crib management
• Designed for compatibility with SANDVIK COROMANT modular tooling system components

Compatibility

Designed as an OEM-style adapter for use within SANDVIK COROMANT modular tool holding systems. Confirm interface type and coupling standard against your specific machine tool spindle or turret configuration before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with modular toolholding assembly procedures. Ensure the machine spindle or turret is fully powered down and at a complete stop before handling or installing any tooling components. Mating surfaces should be clean and free of chips, burrs, or contaminants prior to assembly to maintain proper seating and runout accuracy. Follow the machine tool manufacturer's torque and clamping specifications for the specific interface type used with this adapter.
