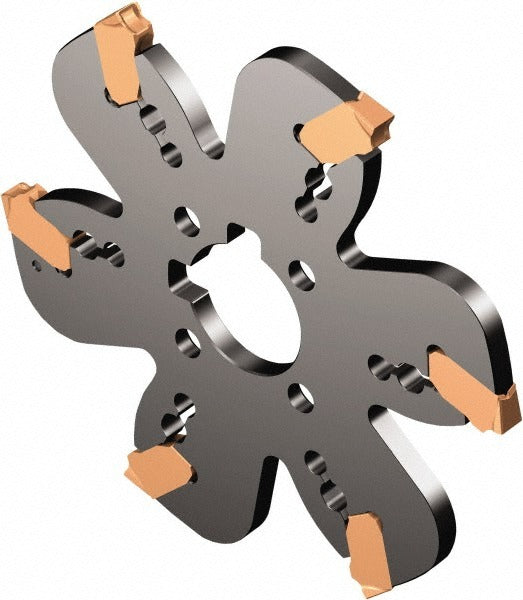

Sandvik Coromant 6657475 Indexable Slotting Cutter 4in

Product Description

The SANDVIK COROMANT 6657475 is an indexable slotting cutter from the Corocut QD series, designed for precision slot milling in metalworking applications. It features a 4-inch cutter diameter, a 0.125-inch cutting width, and an arbor hole connection with a 1-inch bore. The cutter body holds 8 straight-tooth inserts secured by spring clamp, using QD-NG-0318-020E-PM inserts. Maximum depth of cut is 1.0158 inches (25.80 mm), and the tool is rated for a maximum of 5,400 RPM. This cutter is installed by machining professionals and toolroom technicians on horizontal or vertical milling machines and machining centers requiring repeatable, narrow-slot operations.

This slotting cutter is suited for production slot milling and grooving operations in ferrous and non-ferrous materials. The right-hand cutting direction and straight tooth geometry make it appropriate for consistent slotting passes in both job shop and production environments. The AQD.Y toolholder style integrates with compatible arbor setups used across a range of industrial milling machines. No Weldon flat is present on this cutter body.

Key Features

• Corocut QD series indexable design with 8 straight-tooth insert pockets
• Spring clamp insert holding method for positive, repeatable seating of QD-NG-0318-020E-PM inserts
• 4-inch cutter diameter with 0.125-inch cutting width for narrow slotting operations
• Maximum depth of cut of 1.0158 inches (25.80 mm)
• Right-hand cutting direction, rated to 5,400 RPM
• Arbor hole connection with 1-inch bore and 1-inch hub diameter

Compatibility

Compatible inserts are QD-NG-0318-020E-PM. The cutter body uses the AQD.Y toolholder style and is designed for arbor-mount milling setups accepting a 1-inch bore arbor.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the milling machine spindle is fully stopped and locked out before mounting or demounting the cutter. Verify arbor bore fit and insert seating before initiating any cut. Follow the machine manufacturer and insert manufacturer guidelines for feed rates and spindle speeds — do not exceed the 5,400 RPM rating for this cutter.
