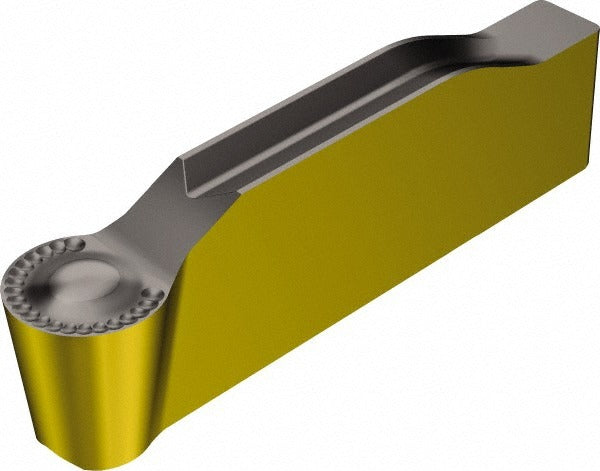

Sandvik Coromant 6532118 Grooving Insert Solid Carbide 8mm

Product Description

The SANDVIK COROMANT 6532118 is a solid carbide grooving insert designed for use in CoroCut 1-2 series toolholders on CNC lathes and turning centers. It carries an N123x1L1RM insert style with a neutral hand orientation and an 8 mm cutting width, making it suited for consistent groove profiles in a range of workpiece materials. The multilayer MT-CVD coating — TiCN over Al2O3 with a TiN topcoat — provides wear resistance and heat management during interrupted or continuous grooving operations. Machinists and CNC operators working in production turning environments install this insert as a direct replacement within the CoroCut 1-2 system.

This insert is intended for external and face grooving applications on CNC turning machines. With a maximum depth of cut of 3.8 mm and a positive rake geometry, it is well suited for grooving in medium-duty turning cycles on steel, stainless steel, and similar materials. The RM chip breaker geometry assists in chip control during through-grooving and part-off adjacent operations. It is sized for L-seat toolholders in the CoroCut 1-2 platform and is sold individually, with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with MT-CVD multilayer coating: TiCN, Al2O3, and TiN for extended tool life
• 8 mm cutting width with a 4 mm corner radius for consistent groove geometry
• Maximum depth of cut of 3.8 mm, with an effective range of 3 mm to 4 mm
• Neutral hand orientation compatible with standard CoroCut 1-2 L-seat toolholders
• Positive rake angle with RM chip breaker for controlled chip formation
• ISO code N123L1-0800-RM 4325 for direct cross-reference and procurement

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders accepting an L insert seat. ISO code N123L1-0800-RM 4325 can be used for direct toolholder compatibility verification per the CoroCut 1-2 system specifications.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. The machine spindle must be stopped and all axes locked before changing inserts. Use the appropriate Torx or insert-clamping key specified for the CoroCut 1-2 toolholder to seat and secure the insert without overtightening the clamp screw. Inspect the insert pocket and clamping components for wear or debris before seating a new insert.
