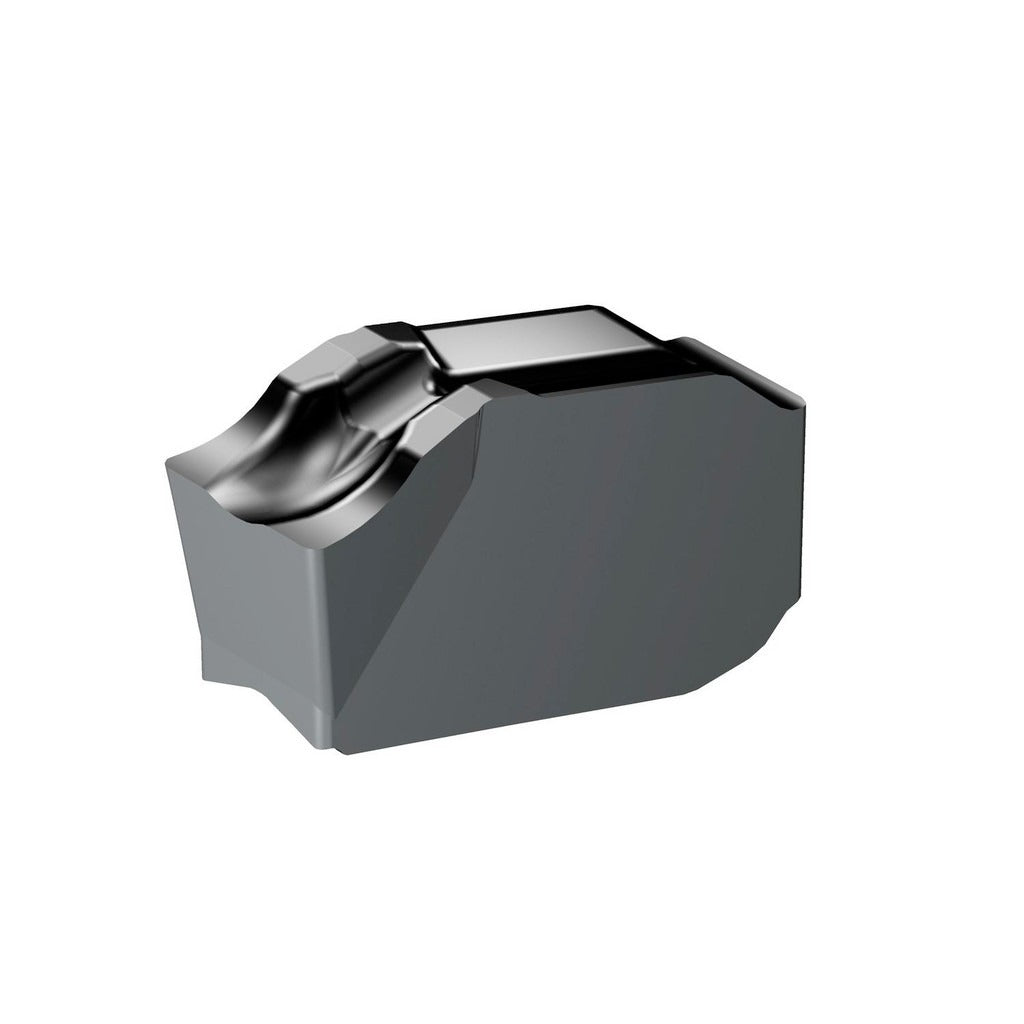

Sandvik Coromant 6427338 Cutoff Insert 2 Mm Carbide

Product Description

The SANDVIK COROMANT 6427338 is a solid carbide cutoff and grooving insert from the CoroCut QD series, designed for precision parting and grooving operations on CNC lathes and turning centers. It features a 2.00 mm cutting width (0.0787 inch) with a neutral hand orientation and a 7-degree relief angle, making it suitable for consistent, repeatable cuts in both ferrous and non-ferrous materials. The TiAlN PVD coating in Grade 1105 delivers wear resistance and thermal stability under moderate to high cutting speeds. Installation is performed by licensed machinists and CNC tooling specialists.

This insert is applied in grooving and parting operations on turning machines in production and job-shop environments. It is clamp-held into compatible CoroCut QD toolholders and is suited for both light and medium-duty stock removal. The CM chipbreaker geometry promotes controlled chip evacuation during grooving passes, which is critical for maintaining workpiece surface integrity. Typical applications include OD grooving, face grooving, and full parting of bar stock in both short-run and high-volume production settings.

Key Features

• 2.00 mm (0.0787 inch) cutting width with a width tolerance of 0.001969 inch
• TiAlN PVD coating in Grade 1105 for wear and heat resistance
• CM chipbreaker for controlled chip formation during grooving and parting
• 7-degree relief angle for clearance and reduced flank wear
• 0.20 mm (0.0079 inch) corner radius for a defined, consistent cutting edge
• Neutral hand orientation compatible with standard CoroCut QD clamp-style toolholders

Compatibility

Designed for use with compatible CoroCut QD series clamp-style toolholders that accept Insert Size Code E and Insert Seat Size E geometry.

Installation Notes

This insert is installed and replaced by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing any insert. Ensure the clamp and insert seat are clean and free of chips before installation. Do not exceed the toolholder manufacturer's recommended cutting parameters for this insert grade and geometry.
