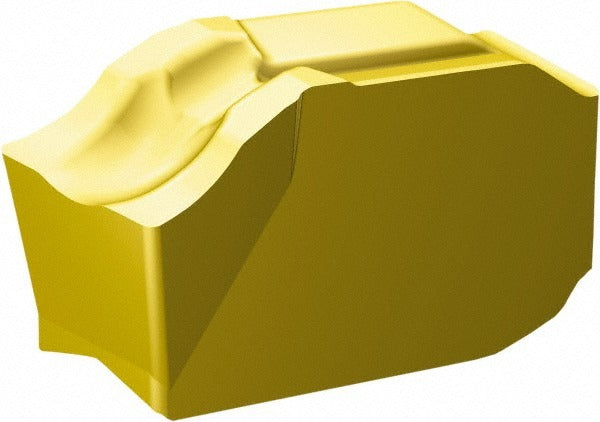

Sandvik Coromant 6398216 Cutoff Insert 3mm Corocut Qd

Product Description

The SANDVIK COROMANT 6398216 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It belongs to the CoroCut QD series and carries the manufacturer catalog designation QD-RG-0300-0502-CM 1135. The insert features a 3.00 mm cutting width, a 5-degree right-hand lead angle, a 7-degree relief angle, and a 0.20 mm corner radius. A PVD-applied TiCN/Al2O3/TiN multilayer coating provides wear resistance and thermal stability at the cutting edge. The CM chipbreaker geometry is suited for chip control in a variety of workpiece materials. Licensed machinists and CNC operators install this insert as a replacement or production-quantity consumable in compatible QD-series toolholders.

This insert is intended for use in metalworking applications including turning, parting, and grooving of ferrous and non-ferrous materials on production and job-shop lathes. The G insert seat size and clamp-held mounting method are standard to the CoroCut QD platform. The right-hand insert hand designation means the insert is oriented for standard right-hand tool setups. It is sold individually with a minimum order quantity of 10 units, making it appropriate for shops that maintain a standing inventory of parting inserts.

Key Features

• Solid carbide substrate with PVD-applied TiCN/Al2O3/TiN coating for extended tool life
• 3.00 mm cutting width with 0.20 mm corner radius for precise parting and grooving
• CM chipbreaker geometry for reliable chip control
• 5-degree right-hand lead angle and 7-degree relief angle
• Clamp-held mounting in G-seat CoroCut QD compatible toolholders
• Overall insert length of 0.3937 inches (10.00 mm)

Compatibility

Designed for use with CoroCut QD series toolholders that accept a G insert seat size with clamp-held mounting. Specific toolholder compatibility should be verified against the CoroCut QD system documentation using insert style QD and seat size G.

Installation Notes

This insert is installed by a machinist or CNC tooling technician. The machine spindle must be stopped and the turret or tool station must be de-energized before changing inserts. Use the appropriate Torx or clamping key specified for the QD-series toolholder to seat and secure the insert. Do not exceed the cutting parameter ranges specified in the toolholder documentation for this insert grade and chipbreaker.
