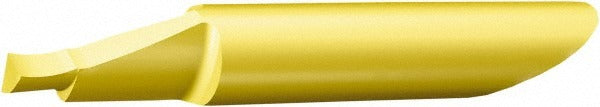

Sandvik Coromant 6365884 Face Grooving Tool Solid Carbide

Product Description

The SANDVIK COROMANT 6365884 is a solid carbide face grooving tool designed for precision internal grooving operations on lathes and turning centers. With a 4 mm groove width and a 6 mm shank diameter, this right-hand cutting tool is built for producing accurate face grooves in bores and turned features. The solid carbide construction provides rigidity and wear resistance suited to demanding cutting conditions. Licensed machinists and CNC turning operators rely on this style of tool for tight-tolerance grooving work in production and job shop environments.

This face grooving tool is suited for internal grooving applications where controlled groove geometry is required. It accommodates a minimum hole diameter of 5.70 mm and a maximum hole depth of 22 mm, making it appropriate for small-bore face grooving on short to medium workpieces. The 25 mm projection allows reach into the bore without requiring extended tooling setups. Typical applications include grooving for snap rings, O-ring seats, and retaining features in turned components across aerospace, automotive, and general machining sectors.

Key Features

• Solid carbide construction for rigidity and extended tool life in grooving applications
• 4 mm groove width for consistent, repeatable groove geometry
• Right-hand cutting direction compatible with standard lathe and turning center setups
• 6 mm shank diameter fits common boring bar and toolholder systems
• 25 mm projection provides reach into small bores without extended tooling
• 0.20 mm nose radius for controlled groove corner geometry

Compatibility

Designed as an OEM-style face grooving tool for use in CNC turning centers and lathes accepting a 6 mm shank diameter boring and grooving toolholder.

Installation Notes

This tool is installed and adjusted by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or changing the tool in the toolholder. Ensure the shank is fully supported and clamped to the toolholder manufacturer's specified engagement length to prevent chatter and deflection. Follow the machine tool manufacturer's setup procedures and verify tool offset data in the control before running the first part.
