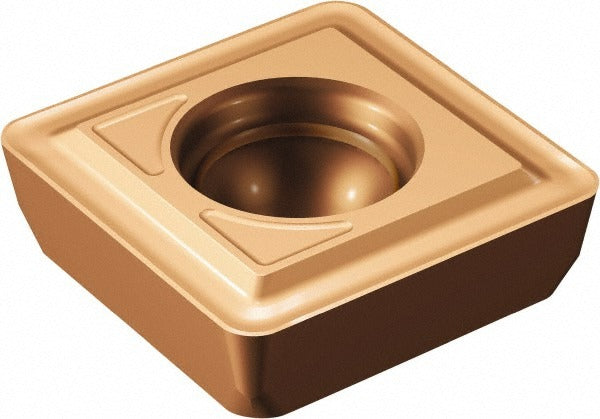

Sandvik Coromant 6227414 Indexable Drill Insert Solid Carbide

Product Description

The SANDVIK COROMANT 6227414 is a solid carbide indexable drill insert engineered for use in 880-series indexable drill bodies. It features a square shape with an inscribed circle of 0.6083 inches (15.45 mm) and a corner radius of 0.0394 inches (1.00 mm). The insert is PVD-coated with a TiAlN and AlCr2O3 multilayer coating, delivering heat resistance and extended tool life in demanding drilling operations. The MS chipbreaker geometry is designed to manage chip formation across a range of workpiece materials. Installation is performed by qualified machinists or tooling technicians in CNC machining centers and drill press applications.

This insert is suited for use in indexable drilling operations on machining centers, turning centers with live tooling, and dedicated drill presses. The right-hand cutting direction makes it compatible with standard spindle rotation in most CNC setups. Insert size 08P and the 880 style designation indicate fitment within the Sandvik Coromant 880 indexable drill platform, where it functions as a replaceable cutting edge to restore drill performance without replacing the full drill body.

Key Features

• Solid carbide construction for rigidity and dimensional stability under high cutting loads
• PVD-applied TiAlN and AlCr2O3 multilayer coating for elevated temperature resistance and wear reduction
• MS chipbreaker geometry for controlled chip evacuation during drilling
• Square insert shape with 0.6083 inch inscribed circle for precise seating in 880-series drill bodies
• 1.00 mm corner radius for balanced edge strength and surface finish
• Right-hand cutting direction for standard CNC spindle rotation

Compatibility

Designed for use in Sandvik Coromant 880-series indexable drill bodies accepting insert size 08P with a square insert style.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or tooling technician. Power down and de-energize the spindle fully before accessing the drill body. Use a torx or hex key as specified by the drill body manufacturer to seat and secure the insert, and inspect the pocket and clamping screw for wear before installing a new insert. Always confirm the insert is fully seated and the clamping screw is properly tightened before resuming cutting operations.
