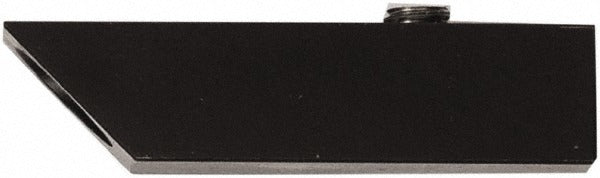

Sandvik Coromant 6224885 Stop Indexable Tools

Product Description

The SANDVIK COROMANT 6224885 is a stop component designed for use with indexable tooling systems. It provides a fixed reference point that controls tool projection and ensures repeatable positioning during setup and changeover. This part seats within the QS Holding System, a modular quick-change tooling platform used in CNC turning and machining centers. Installation is performed by machinists and toolroom technicians as part of routine tool assembly and presetting. The 6224885 is a precision-fit component that supports consistent depth-of-cut settings across multiple inserts and tool changes.

This stop is engineered specifically for use with the QS Holding System and is suited to production turning environments where rapid, repeatable tool changes are a priority. Typical applications include CNC lathe and turning center setups where indexable insert holders are frequently cycled. The part is appropriate for both light and moderate-duty turning operations where maintaining consistent tool gauge length is critical to part quality and reduced setup time.

Key Features

• Designed for use with the QS Holding System modular quick-change platform
• Provides repeatable tool projection reference for indexable toolholders
• Supports faster, more consistent tool changeovers in CNC turning applications
• Compact and lightweight at 0.25 pounds for easy handling during setup
• Sold individually, allowing targeted replacement without full assembly purchase

Compatibility

Designed for use with the SANDVIK COROMANT QS Holding System for indexable tooling assemblies.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians familiar with the QS Holding System. De-energize and lock out the machine before handling any toolholder components. Refer to the machine tool and toolholder manufacturer documentation for correct seating and torque procedures. Ensure all mating surfaces are clean and free of chips or debris before assembly.
