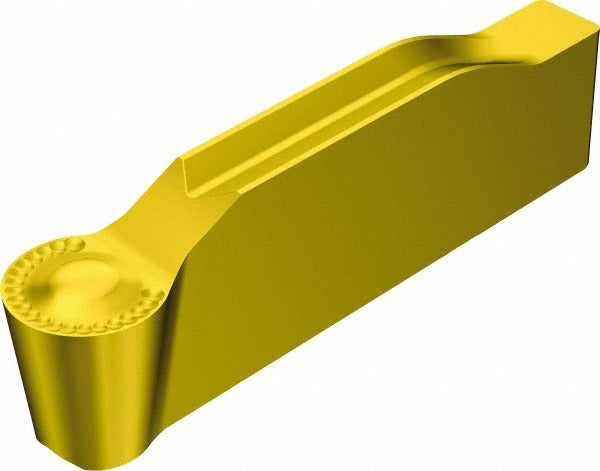

Sandvik Coromant 6199517 Grooving Insert 6mm Corocut 1-2

Product Description

The SANDVIK COROMANT 6199517 is a solid carbide grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It carries a CVD-applied multilayer coating of TiCN, Al2O3, and TiN, which provides thermal resistance and wear protection across a range of workpiece materials. The insert features a neutral hand orientation, a 6 mm cutting width, and a maximum depth of cut of 2.8 mm. A 3 mm corner radius contributes to edge stability and surface finish consistency. This insert is installed by machinists and CNC turning specialists in production and job-shop environments.

The 6199517 fits the CoroCut 1-2 series tooling system and is suited for external grooving, parting off, and shallow profiling on small to medium diameter workpieces. The S05F grade is optimized for finishing and semi-finishing cuts at higher cutting speeds, making it well suited for steel and stainless steel applications where surface finish and tool life are both priorities. It is commonly used in industries such as aerospace components, hydraulic fittings, and precision turned parts where dimensional consistency is critical.

Key Features

• Solid carbide substrate with CVD multilayer TiCN, Al2O3, and TiN coating for extended wear life
• 6 mm cutting width with a maximum depth of cut of 2.8 mm
• 3 mm corner radius supports stable cutting edge and improved surface finish
• Neutral hand insert style compatible with both left- and right-hand toolholder setups
• S05F manufacturer grade suited for finishing and semi-finishing at elevated cutting speeds
• Insert Size 0600, N123 insert style within the CoroCut 1-2 series

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders. Specific toolholder compatibility should be confirmed against SANDVIK COROMANT CoroCut 1-2 insert seating specifications for N123 insert style with 0600 insert size designation.

Installation Notes

Installation should be performed by qualified machinists following the toolholder manufacturer's clamping torque and seating procedures. Ensure the machine spindle is fully stopped and the CNC program is in a safe state before changing inserts. Use the appropriate torx or hex key as specified by the toolholder to achieve proper clamping force without overtightening. Verify insert seating and alignment before resuming cutting operations.
