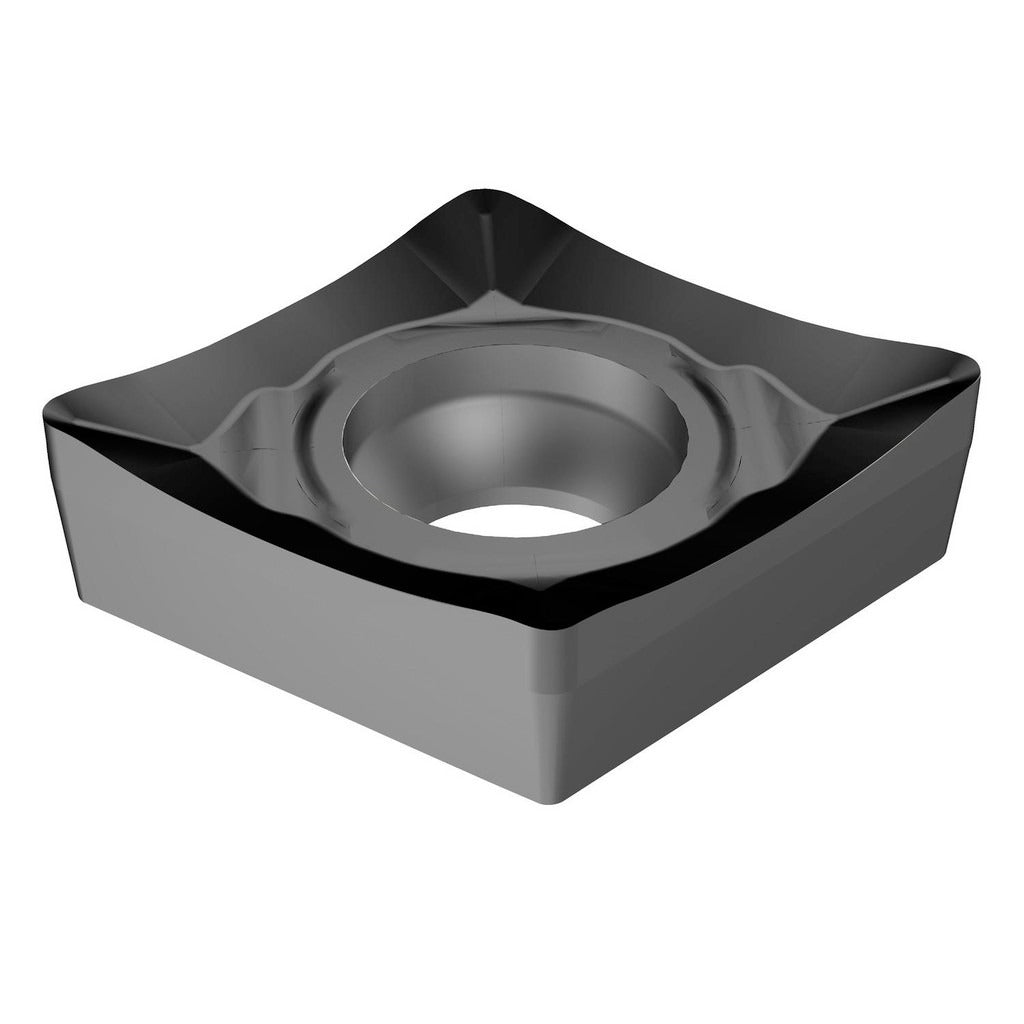

Sandvik Coromant 6075415 Turning Insert Coroturn 107

Product Description

The SANDVIK COROMANT 6075415 is a solid carbide turning insert designated CCGX32.52AL 1105, designed for precision external turning operations on CNC lathes and turning centers. Coated with TiAlN2 via a PVD process, it delivers heat and wear resistance suited for demanding cutting conditions. The insert features an 80-degree diamond shape with a neutral hand orientation, a 1/32-inch (0.0315-inch) corner radius, and a 3/8-inch inscribed circle. It belongs to the CoroTurn 107 series and is installed by machinists and tooling technicians in production and job-shop turning applications.

This insert is engineered primarily for machining stainless steel, with secondary suitability for superalloys and titanium. The AL chip breaker geometry is optimized for light to moderate depths of cut, with a maximum depth of cut of 0.3492 inch (8.87 mm). It is held in place by a screw-type clamping method, making it compatible with CoroTurn 107 toolholders designed for CCGX-style screw-on inserts. Typical applications include finishing and semi-finishing passes on rotating workpieces in both horizontal and vertical turning configurations.

Key Features

• TiAlN2 PVD coating for elevated thermal resistance and extended tool life on difficult-to-machine materials
• 80-degree diamond insert shape (CCGX) provides a strong cutting edge with good versatility for turning and facing
• AL chip breaker geometry tuned for stainless steel, superalloy, and titanium workpiece materials
• Screw-type insert holding method for positive, repeatable seating and quick indexing
• Neutral hand orientation suits a wide range of toolholder setups without directional restriction
• Two cutting edges per insert (indexable) for cost-effective tooling use

Compatibility

Designed for use in CoroTurn 107 series screw-clamp toolholders accepting CCGX-style inserts with a 3/8-inch inscribed circle. ISO code CCGX09T308AL1105 identifies the exact insert geometry and grade for toolholder matching. Verify toolholder seat and clamping screw specifications before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or tooling technician with the machine in a full stopped and locked-out state per applicable machine safety procedures. Use the correct Torx or hex key for the clamping screw seat specified by the toolholder manufacturer. Inspect the insert seat and shim for debris or damage before seating a new insert. Never operate the insert beyond its rated maximum depth of cut, as this can cause insert fracture and workpiece damage.
