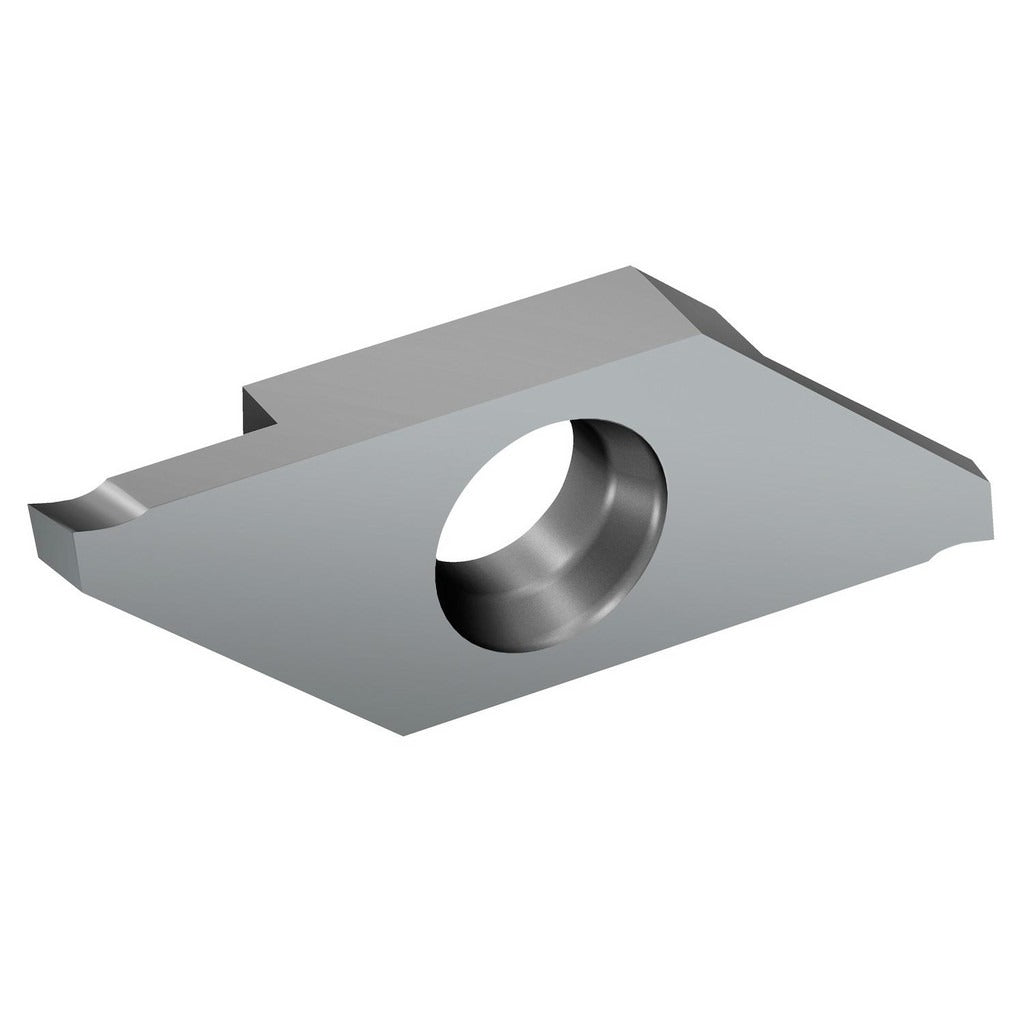

Sandvik Coromant 6071732 Carbide Cutoff Insert 0.028 in

Product Description

The SANDVIK COROMANT 6071732 is a solid carbide cutoff and grooving insert in the CoroCut XS series, designed for precision parting, grooving, and turning operations on CNC lathes and turning centers. The insert carries a MACR3070N geometry with a 1105 manufacturer grade and a PVD-applied TiAlN coating for extended tool life in demanding cutting environments. Cutting width is 0.028 inches (0.70 mm) with a maximum depth of cut of 0.169 inches (4.30 mm). The right-hand, zero-degree lead angle and a 6-degree relief angle suit finishing and light-stock-removal passes where tight dimensional control is required. Screw-clamping secures the insert in compatible CoroCut XS toolholders.

This insert is suited for small-diameter parting and grooving work in production turning environments, both in job shops and high-volume manufacturing cells. The 0.05 mm corner radius and MAC chipbreaker geometry make it appropriate for materials where chip control and surface finish are priorities. Its compact insert size code 3 fits CoroCut XS toolholder seats rated for size 3 inserts. Licensed machinists and CNC setup technicians are the primary users of this tooling in lathe and Swiss-type machine applications.

Key Features

• Solid carbide construction with PVD TiAlN coating for wear resistance and heat management
• 0.70 mm (0.028 inch) cutting width for narrow-groove and parting applications
• Maximum depth of cut of 4.30 mm (0.169 inches)
• Right-hand, zero-degree lead angle with 6-degree relief angle
• MAC chipbreaker geometry for controlled chip evacuation
• Screw-clamping insert holding for secure, repeatable seating

Compatibility

Designed for use with CoroCut XS series toolholders accepting insert seat size 3. Refer to the SANDVIK COROMANT CoroCut XS toolholder selection guide to confirm holder compatibility before ordering.

Installation Notes

Installation of indexable inserts should be performed by a qualified machinist or CNC setup technician with the machine in a fully stopped and locked-out state. Use the appropriate Torx or hex key to torque the clamping screw; do not overtighten. Inspect the insert pocket and seating surface for chips or debris before seating the insert. Follow the toolholder manufacturer guidelines for clamping procedure and recommended cutting parameters for the workpiece material.
