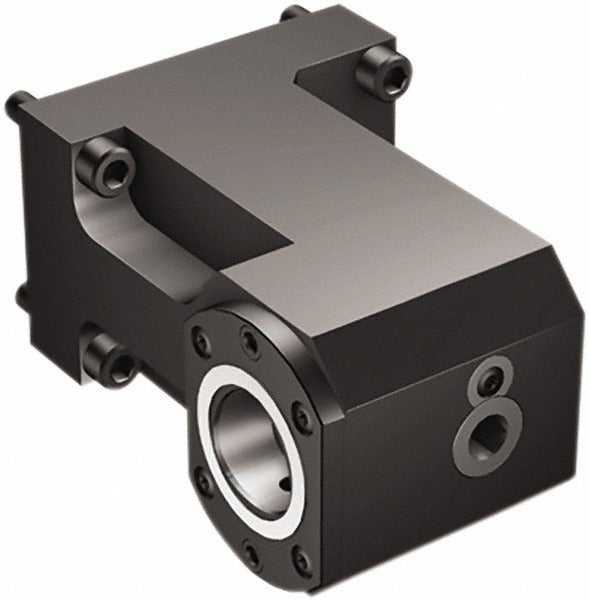

Sandvik Coromant 6047718 Coromant Capto Clamp

Product Description

The SANDVIK COROMANT 6047718 is a Cx-TRI-MS clamp designed for use with indexable cutting tools in the Coromant Capto modular tooling system. This clamp secures indexable inserts within Capto-style toolholders, maintaining precise insert positioning during turning, boring, and milling operations. It is a direct replacement component intended for machinists and tooling technicians who maintain or rebuild Coromant Capto toolholders. The catalog reference for this clamp is C5-TRI-MS60A, placing it in the C5 size range of the Coromant Capto interface family. At 20.34 pounds, this is a substantial tooling component suited for heavy-duty machining environments.

This clamp is used in CNC turning centers, machining centers, and multi-task machines equipped with Coromant Capto toolholding systems. It is appropriate for both production shop environments and tool crib maintenance operations where worn or damaged clamp hardware needs to be replaced to restore accurate insert clamping. Tooling technicians and machinists performing insert holder rebuilds are the primary installers of this component.

Key Features

• Cx-TRI-MS clamp style engineered for Coromant Capto indexable toolholders
• Catalog number C5-TRI-MS60A confirms C5 Capto interface sizing
• OEM-specification replacement component for maintaining insert clamping accuracy
• Single-unit packaging supports individual toolholder repair or replacement
• UNSPSC Code 23242100 classifies this as a cutting tool component

Compatibility

Designed for use with Coromant Capto C5-size toolholders requiring a TRI-MS style indexable clamp, as identified by catalog number C5-TRI-MS60A. Verify clamp style and Capto interface size against your specific toolholder assembly before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with Coromant Capto clamping systems. Ensure the machine is fully powered down and the spindle is secured before removing or replacing any toolholder components. Use only manufacturer-specified torque procedures and tooling keys when seating and tightening the clamp. Inspect the insert pocket and seating surfaces for wear or debris before installing the replacement clamp.
