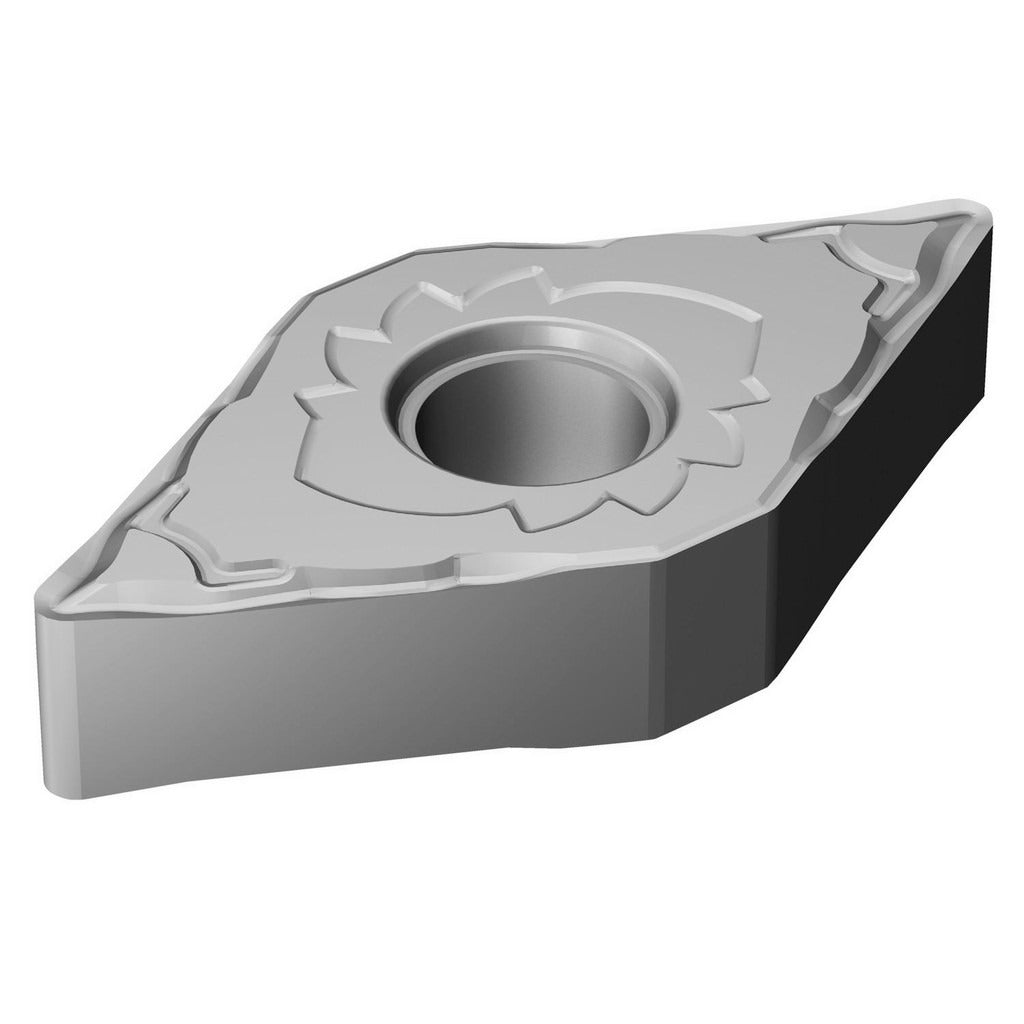

Sandvik Coromant 5891402 DNMG433-SF H13A Turning Insert

Product Description

The SANDVIK COROMANT 5891402 is a solid carbide, uncoated turning insert in the DNMG433-SF H13A designation, designed for use in the T-Max P series tooling system. It features a 55-degree diamond insert shape with a neutral hand orientation, a 1/2-inch inscribed circle, a 3/64-inch (0.0469 inch) corner radius, and a 3/16-inch insert thickness. The SF chip breaker geometry and rounded cutting edge style make this insert well suited for finishing and semi-finishing operations. With four cutting edges per insert, this grade is optimized for stainless steel, superalloys, and titanium. It is installed by machinists and tooling technicians on CNC lathes and turning centers.

This insert is intended for metal-cutting applications where controlled chip formation and edge integrity are critical. Primary workpiece material is stainless steel (ISO material code M), with secondary suitability for superalloys and titanium (ISO material code S). The T-Max P series designation indicates compatibility with Sandvik Coromant's T-Max P turning toolholders that accept DNMG-style inserts. Typical applications include external and internal turning on precision components in aerospace, energy, and industrial manufacturing environments. The SF geometry is particularly effective at moderate cutting depths up to 6.40 mm.

Key Features

• Solid carbide, uncoated (bright finish) construction in manufacturer grade H13A
• 55-degree diamond insert shape (shape code D) with neutral hand orientation
• SF chip breaker geometry optimized for stainless steel and superalloy turning
• Rounded cutting edge style for improved edge stability and surface finish
• Four usable cutting edges per insert for extended tool life and cost efficiency
• Maximum depth of cut of 6.40 mm with clamp and pin insert holding method

Compatibility

Designed for use in T-Max P series turning toolholders accepting DNMG-style inserts. Compatible with toolholders specifying a 1/2-inch inscribed circle, clearance code N, and tolerance code M. ISO designation DNMG150412-SF H13A.

Installation Notes

Insert replacement and seating should be performed by a qualified machinist or tooling technician with the machine fully powered down and in a safe, locked-out state. Ensure the insert pocket, clamp, and pin are clean and free of chips before seating the new insert. Use the appropriate torque wrench per the toolholder manufacturer's clamping specifications. Verify insert orientation and chip breaker direction before resuming cutting operations.
