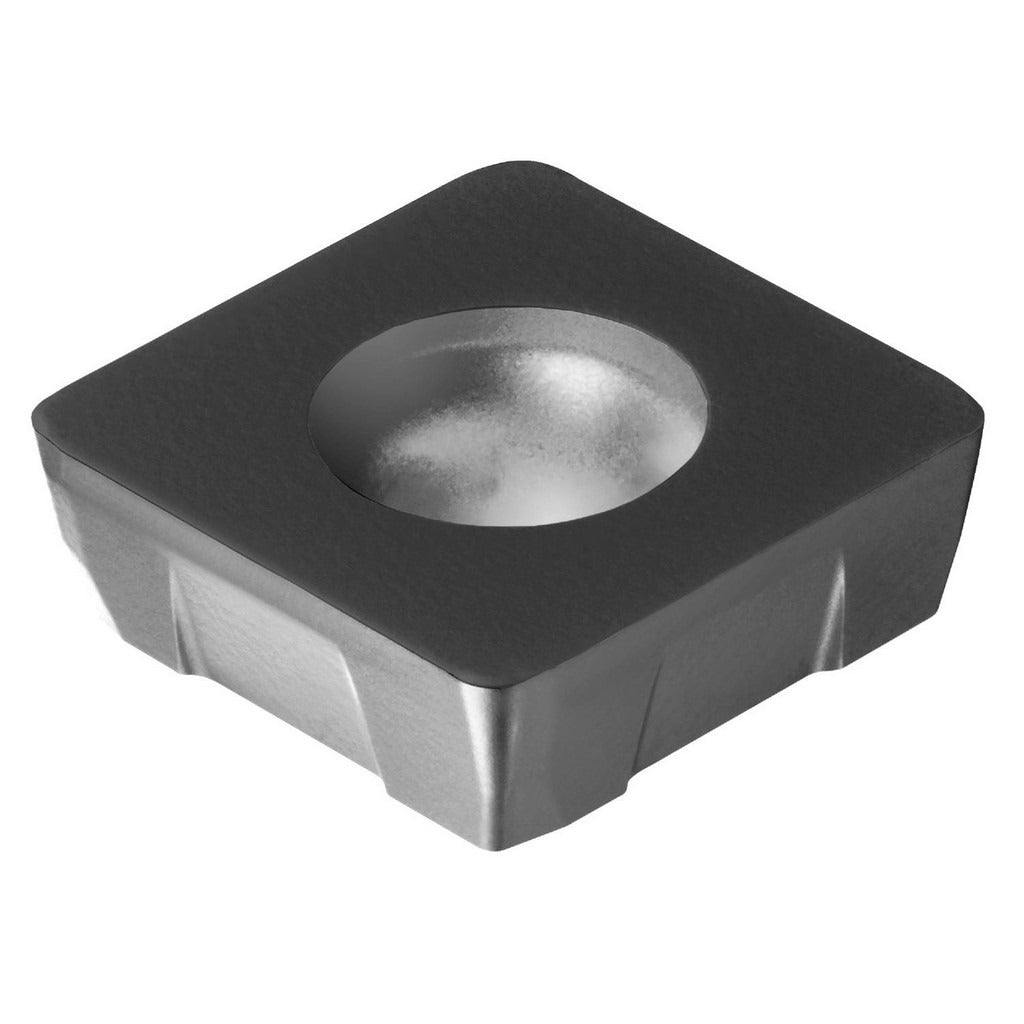

Sandvik Coromant 5888506 Milling Insert R210 Tialn

Product Description

The SANDVIK COROMANT 5888506 is a solid carbide milling insert designed for use in R210 series face and shoulder milling cutters. Coated with TiAlN via a PVD process, this square insert carries grade 1040 and is engineered for cutting steel and stainless steel in demanding milling applications. It features a positive rake geometry with a corner-rounded cutting edge style and an MM chip breaker. The insert measures 4.00 mm thick with an inscribed circle of 9.40 mm and delivers up to 1.10 mm maximum depth of cut. Four cutting edges are available per insert, making it an efficient choice for production milling environments. Licensed trades and tooling specialists install this insert in compatible R210 cutter bodies.

This insert is intended for milling steel and stainless steel workpieces classified under material grades P and M. It fits R210 series cutter bodies and suits both roughing and semi-finishing passes where controlled chip formation and surface integrity are required. The right-hand configuration and screw-holding method are standard for R210 tooling setups. It is a single-sided insert with a 90-degree included angle, suited for square shoulder milling operations in both job shop and production environments.

Key Features

• Solid carbide substrate with TiAlN PVD coating for heat and wear resistance
• Grade 1040 with MM chip breaker geometry for steel and stainless steel applications
• 4 cutting edges per insert for extended tool life per unit
• Positive rake angle with corner-rounded cutting edge for reduced cutting forces
• Maximum depth of cut 1.10 mm, corner radius 1.00 mm
• Right-hand, screw-held, single-sided insert for use in R210 cutter bodies

Compatibility

Compatible with R210 series milling cutter bodies. ANSI and ISO code: R210-09 04 12M-MM 1040. Insert size code: 090412. Designed for primary workpiece materials steel and stainless steel.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the cutter body is secured and the machine spindle is fully stopped and locked out before seating or replacing inserts. Use the appropriate Torx or hex key to fasten the clamping screw to the cutter body specification. Inspect the insert pocket and clamping screw for wear or damage before inserting a new insert.
