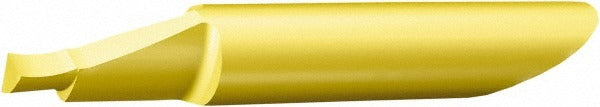

Sandvik Coromant 5848999 Face Grooving Tool Solid Carbide

Product Description

The SANDVIK COROMANT 5848999 is a solid carbide face grooving tool designed for precision internal face grooving operations on CNC lathes and turning centers. With a 6 mm shank diameter and a 1 mm groove width, this tool delivers tight dimensional control in small-bore applications. The solid carbide construction provides rigidity and wear resistance needed for consistent, repeatable groove profiles. A minimum hole diameter of 4.20 mm (0.1654 inches) and a maximum hole depth of 2.00 mm (0.0787 inches) define the working envelope. Machinists and toolroom professionals install this tool in appropriate holders for high-precision face grooving in production and job-shop environments.

This face grooving tool is suited for small-bore internal face grooving where tight tolerances and a clean groove profile are required. Typical applications include grooving recesses for snap rings, seals, and O-ring grooves in turned components. The compact 42.50 mm (1.6732 inch) overall length and 2.00 mm projection make it effective in confined bore geometries. It is appropriate for use on CNC turning centers handling small-diameter workpieces in both production and prototype machining settings.

Key Features

• Solid carbide construction for rigidity and extended tool life in face grooving operations
• 1 mm groove width for precise, narrow groove profiles
• 6 mm shank diameter for compatibility with standard small-bore toolholding systems
• Minimum hole diameter of 4.20 mm (0.1654 inches) enables work in very small bores
• Maximum hole depth of 2.00 mm (0.0787 inches) with a matching projection of 2.00 mm
• Corner radius of 0.15 mm for controlled groove geometry and reduced stress concentration

Compatibility

Designed as an OEM-style replacement face grooving tool for use in compatible small-bore turning and grooving toolholding systems accepting a 6 mm shank diameter.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine in a fully stopped and locked-out state per applicable machine safety procedures. Secure the shank in a compatible toolholder to the holder manufacturer's specified clamping method before operation. Verify tool projection and runout before taking a first cut. Do not exceed the rated maximum hole depth of 2.00 mm to avoid tool overload or deflection.
