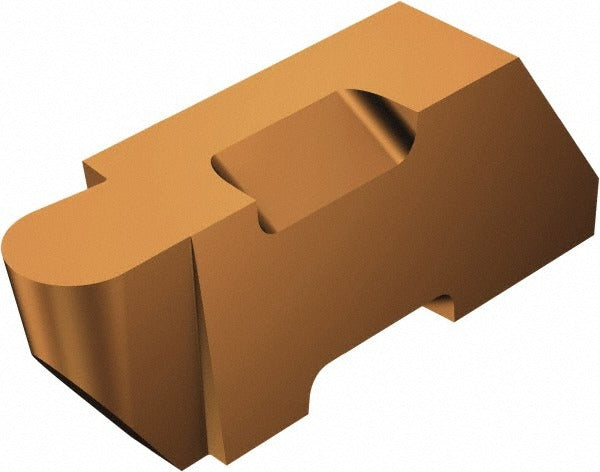

Sandvik Coromant 5846600 Grooving Insert Tlr Top Lok

Product Description

The SANDVIK COROMANT 5846600 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Finished with a PVD-applied TiAlN coating, this left-hand insert delivers wear resistance and heat tolerance in demanding production environments. It carries a cutting width of 0.188 inches (4.78 mm) and a maximum depth of cut of 0.150 inches (3.81 mm), with a corner radius of 0.094 inches (2.39 mm). Machinists and tool-and-die technicians working with interrupted cuts, hard materials, or tight-tolerance groove profiles will find the positive rake geometry and TLR chip breaker effective for chip control and surface finish consistency.

This insert fits into the Top Lok series toolholding system and is suited for grooving applications in both high-volume production and job-shop environments. The left-hand orientation makes it appropriate for right-to-left grooving passes on conventional and live-tool turning setups. The multi-use designation indicates compatibility with grooving, parting, and profiling operations within its rated depth range. Shops running materials that benefit from TiAlN coatings, including alloy steels, stainless, and cast irons, are the typical users for this insert style.

Key Features

• Solid carbide substrate with PVD TiAlN coating for extended tool life in abrasive and heat-generating cuts
• Left-hand cutting orientation for right-to-left grooving passes
• Positive rake geometry with TLR chip breaker for controlled chip formation
• Cutting width of 0.188 inches (4.78 mm) and corner radius of 0.094 inches (2.39 mm) for defined groove geometry
• Maximum depth of cut range of 0.150 to 0.200 inches (3.00 to 4.00 mm) provides operational flexibility
• Multi-use insert rated for grooving, parting, and profiling within the Top Lok system

Compatibility

Designed for use with SANDVIK COROMANT Top Lok series toolholders accepting insert seat size 3L. ISO code TLR-3094L 1125 and manufacturer catalog number TLR-3094L 1125 can be used to confirm holder and insert compatibility.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician following the toolholder manufacturer torque and clamping specifications for the Top Lok system. Power down and lock out the machine spindle before changing inserts. Inspect the insert seat and clamping mechanism for chips or contamination before seating the insert. Do not exceed the rated maximum depth of cut for the insert size.
