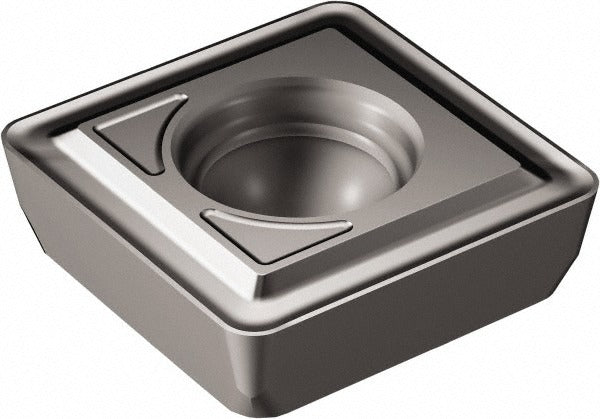

Sandvik Coromant 5765671 Indexable Drill Insert 880LM H13A

Product Description

The SANDVIK COROMANT 5765671 is a solid carbide indexable drill insert designed for use in indexable insert drills requiring precision cutting geometry and consistent performance in metal removal applications. Carrying the H13A manufacturer grade and LM chipbreaker designation, this uncoated square insert features a 6.00 mm inscribed circle (0.2362 inches), a 0.60 mm corner radius (0.0236 inches), and a thickness of 0.1024 inches. The bright, uncoated finish suits applications where coating interaction with the workpiece material is a concern. Machining specialists and toolroom technicians use this insert as a direct replacement in compatible 880-series indexable drill bodies.

This insert is suited for use in indexable drilling operations on machining centers and CNC lathes where the 880 insert style and 03P insert size are specified. The square geometry and LM chipbreaker make it appropriate for general-purpose drilling in a range of metalworking environments, including production shops and job shops running moderate to high feed rates. Install scenario typically involves replacing worn or chipped inserts during routine tooling changeovers on the drill body, keeping downtime short between cuts.

Key Features

• Solid carbide construction for rigidity and wear resistance in drilling applications
• H13A manufacturer grade uncoated, bright finish for consistent cutting without coating buildup
• LM chipbreaker geometry promotes effective chip control during drilling operations
• Square insert shape with 0.60 mm corner radius (0.0236 inches) for precise edge engagement
• 6.00 mm inscribed circle (0.2362 inches) and 03P insert size for compatibility with 880-series drill bodies
• 2.50 mm hole diameter (0.0984 inches) for secure mechanical clamping in the drill body pocket

Compatibility

Designed as an OEM-style replacement insert for indexable drill bodies specifying the 880 insert style and 03P insert size with a square, solid carbide insert geometry.

Installation Notes

Installation is performed by qualified machining technicians or toolroom personnel. Before changing inserts, ensure the machine spindle is fully stopped, locked out, and the drill body is secured in a vise or fixture to prevent movement. Use the correct torque wrench and clamping screw specified by the drill body manufacturer when seating the insert — do not overtighten by hand. Inspect the pocket seating surface and clamping screw threads for wear or debris before installing a new insert.
