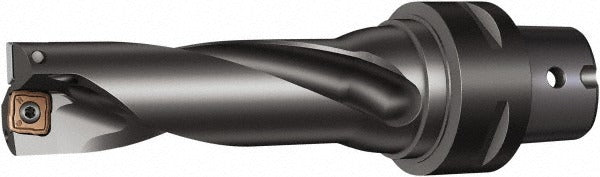

Sandvik Coromant 5765647 Indexable Insert Drill 30mm

Product Description

The SANDVIK COROMANT 5765647 is a CoroDrill 880 series indexable insert drill designed for high-productivity hole-making in metal cutting applications. The drill body accepts two indexable inserts and connects via a modular C5 interface, making it well suited for use with compatible modular tooling systems. It achieves a maximum drill depth of 94 millimeters at a 3xD depth-to-diameter ratio and a nominal drill diameter of 30 millimeters, with a maximum drill diameter of 32.20 millimeters. The steel body construction provides rigidity under demanding feed rates. Right-hand cutting direction and through-coolant capability are standard on this body. Installation and setup are performed by machinists and tooling specialists in production machining environments.

The 5765647 drill body is intended for use in CNC machining centers, turning centers with live tooling, and other machine platforms that accept C5 modular connections. The 3xD depth-to-diameter ratio places this drill in a common range for general-purpose hole making in steel, cast iron, and similar workpiece materials. The flute length of 90 millimeters and body length of 136.41 millimeters suit it for standard spindle-to-workpiece clearance requirements in vertical and horizontal machining centers.

Key Features

• CoroDrill 880 series steel drill body with modular C5 connection interface
• Accepts two indexable inserts for efficient cutting and easy insert replacement
• Maximum drill depth of 94 millimeters at 3xD depth-to-diameter ratio
• Maximum drill diameter of 32.20 millimeters (1.1811 inches)
• Through-coolant capability for chip evacuation and insert life management
• Right-hand cutting direction; flute length of 90 millimeters

Compatibility

Compatible indexable inserts are 880-060406H-C-GM and 880-0604W06H-P-GM as specified by the manufacturer. This drill body is designed for use with C5 modular connection tooling systems within the CoroDrill 880 platform.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Ensure the machine spindle and modular interface are clean and free of debris before mounting the drill body. Power down and lock out the machine before changing inserts or removing the drill body from the spindle. Follow the machine tool manufacturer torque specifications for the modular connection clamping mechanism and consult insert manufacturer guidelines for proper insert seating and screw torque.
