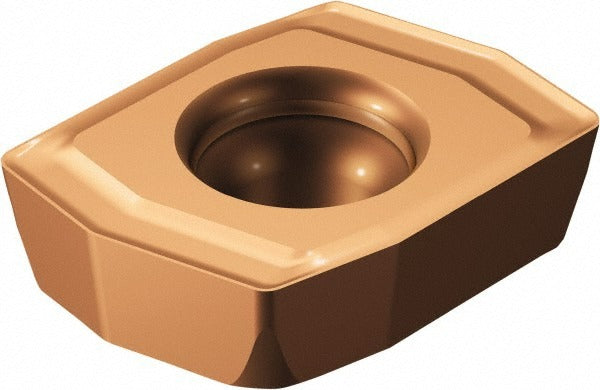

Sandvik Coromant 5765558 Indexable Drill Insert 880LM

Product Description

The SANDVIK COROMANT 5765558 is a solid carbide indexable drill insert designed for use with compatible indexable drill bodies requiring the 880 insert style. Manufactured to grade 1044 with a TiAlN coating applied via PVD process, this insert delivers thermal resistance and wear performance suited to production drilling operations. It features a 4.80 mm (0.1890 inch) inscribed circle, a 0.0866-inch thickness, and a 0.30 mm corner radius. The LM chipbreaker geometry promotes controlled chip evacuation in a range of workpiece materials. Installation is performed by qualified machinists or tooling technicians in CNC and manual drilling applications.

This insert is intended for use in indexable drilling applications across metalworking environments, including general machining shops and production facilities. The rectangle shape and 01C insert size fit compatible 880-series drill bodies. The TiAlN PVD coating supports cutting in steel, cast iron, and similar ferrous materials under dry or minimum-quantity-lubrication conditions. Minimum order quantity is 10 units; inserts are packaged individually.

Key Features

• Solid carbide construction for rigidity and wear resistance in drilling applications
• TiAlN coating via PVD process for thermal resistance and extended tool life
• LM chipbreaker geometry for controlled chip formation and evacuation
• 4.80 mm inscribed circle with 0.30 mm corner radius for precise cutting geometry
• Rectangle shape, 01C insert size, compatible with 880-style indexable drill bodies
• UNSPSC Code 23242105

Compatibility

Designed as an OEM-style replacement insert for 880-series indexable drill bodies requiring a rectangle-style insert with a 4.80 mm inscribed circle and 01C insert size. No additional specific model compatibility data was provided in the product input.

Installation Notes

Indexable drill inserts are installed and replaced by machinists or trained tooling technicians. Before replacing inserts, ensure the machine spindle is fully stopped, the machine is locked out, and the tool body is secured in a vise or fixture. Use the correct torx or hex key specified for the drill body to achieve proper insert clamping torque. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert.
