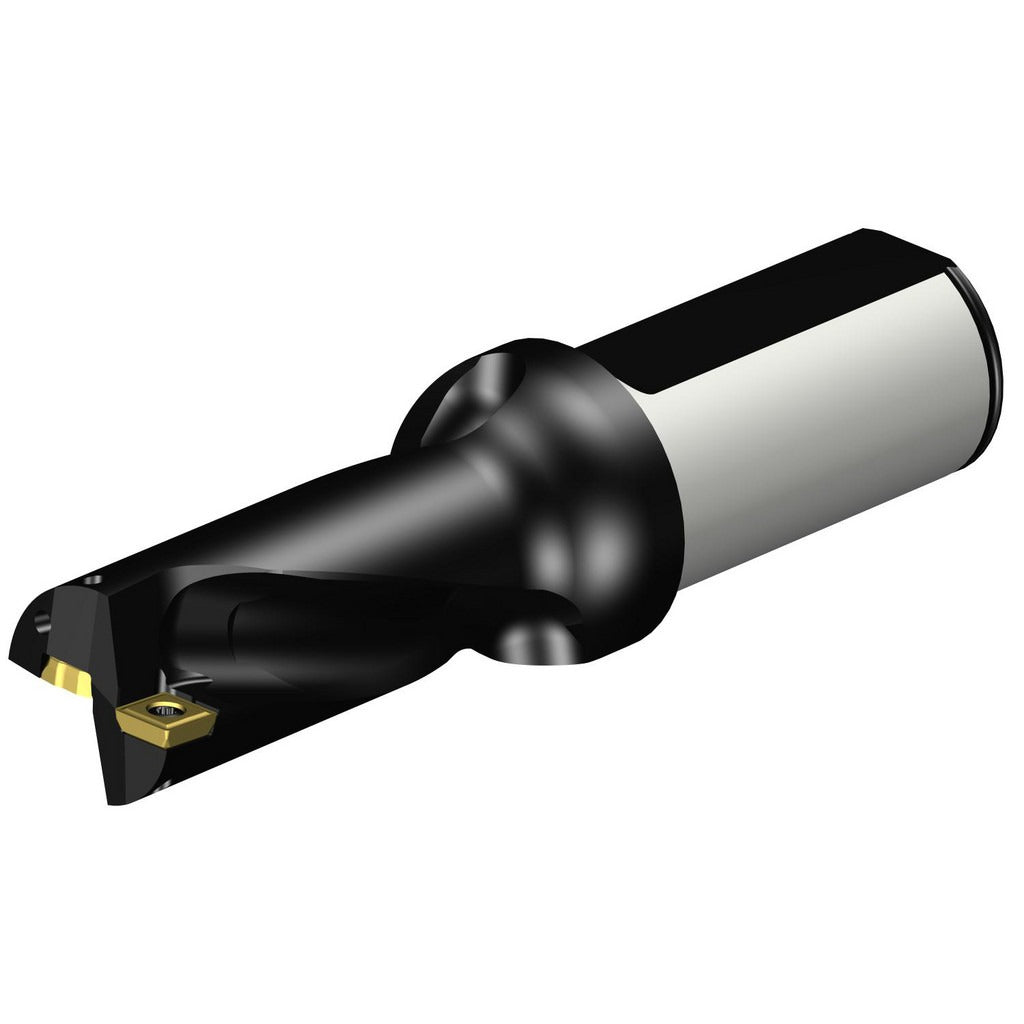

Sandvik Coromant 5765510 Indexable Insert Drill 28mm

Product Description

The SANDVIK COROMANT 5765510 is a straight-shank indexable insert drill designed for high-productivity hole-making operations in metal cutting applications. Built to the CoroDrill 880 series drill style 880..L-02, this tool accepts two indexable inserts and delivers a maximum drill depth of 2.337 inches at a 2xD depth-to-diameter ratio. The 28mm (1.1496 inch) cutting diameter and 32mm (1.2598 inch) straight cylindrical shank make it a direct-fit option for standard CNC machining centers and drill presses equipped with compatible tool holders. The steel body construction and right-hand cutting direction suit general metalworking and production drilling environments. Coolant-through capability supports chip evacuation and insert life in demanding cuts.

This drill body is suited for use in production machining shops, job shops, and manufacturing facilities performing repeat-hole operations in ferrous and non-ferrous materials. It is typically installed by CNC machinists and tooling technicians on vertical or horizontal machining centers. The 2xD ratio makes it well-matched to through-hole and blind-hole operations where controlled depth and consistent diameter are required. The flute length of 3.0079 inches (76.40mm) provides adequate clearance for chip flow at the rated depth range of 2.0 to 3.0 inches.

Key Features

• 28mm (1.1496 inch) maximum drill diameter with 2xD depth-to-diameter ratio
• Accepts two indexable inserts per CoroDrill 880 drill style 880..L-02
• 32mm straight cylindrical shank for standard toolholder compatibility
• Coolant-through design for active chip evacuation and insert cooling
• Right-hand cutting direction; steel body construction
• Flute length of 3.0079 inches (76.40mm) supports full rated drill depth range

Compatibility

Designed for use with CoroDrill 880 series indexable inserts following drill style 880..L-02, accepting insert size 3.00mm (0.1181 inch). Confirm insert grade and geometry selection against material and application requirements before ordering inserts separately.

Installation Notes

Installation and tool changes should be performed by qualified CNC tooling technicians with the machine in a powered-down, locked-out state per applicable safety procedures. Verify shank diameter and toolholder bore compatibility before mounting; the 32mm shank requires a matching ER, hydraulic, or shrink-fit holder rated for that diameter. Torque retention screws to toolholder manufacturer specifications. Confirm coolant-through passages are unobstructed before initiating the first cut.
