Sandvik Coromant 5765454 Indexable Insert Drill 24mm 3xd

Product Description

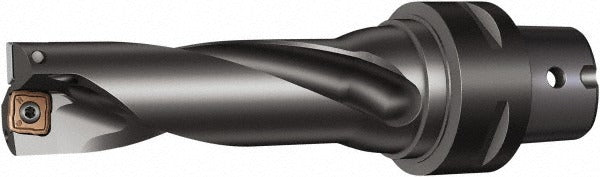

The SANDVIK COROMANT 5765454 is a right-hand indexable insert drill from the CoroDrill 880 series, designed for general-purpose drilling operations in industrial and machining environments. It accepts two indexable inserts in compatible styles 880-050305H-C-GM and 880-0503W05H-P-GM, delivering a maximum drill diameter of 24 millimeters (0.9449 inches) with a 3xD depth-to-diameter ratio. Maximum drill depth reaches 76 millimeters (2.99 inches). The tool body is constructed from steel and features a C6 modular connection shank, making it suitable for use in CNC machining centers and modular tooling systems. Coolant is delivered through axial concentric and radial ports, supporting effective chip evacuation and thermal management during drilling cycles.

This drill body is built for general-purpose hole-making applications across a range of workpiece materials. The 3xD depth ratio and 24mm cutting diameter make it a common choice for production drilling in ferrous and non-ferrous metals. The C6 modular connection integrates with compatible Coromant Capto and modular adapters, allowing flexible use across multiple machine tool setups. CNC machinists, toolroom technicians, and production machining shops are the primary users of this tooling.

Key Features

• CoroDrill 880 series body compatible with 880-series indexable inserts in size codes 050305 and 0503W05
• C6 modular connection shank for integration with modular tooling systems
• Through-coolant capability with axial concentric and radial delivery ports
• Right-hand cutting direction for standard CNC spindle rotation
• Accepts two inserts for center and periphery cutting zones
• Steel tool body construction for rigidity and durability in production environments

Compatibility

Compatible with 880-series indexable inserts including 880-050305H-C-GM and 880-0503W05H-P-GM. Insert lock screw model 5513 020-57 applies. Designed for use with C6 modular connection tooling adapters.

Installation Notes

Installation and setup should be performed by a qualified CNC machinist or toolroom technician familiar with modular tooling systems. Ensure the machine spindle is fully stopped and the tool changer is disabled before mounting or dismounting the drill body. Torque insert lock screws using the appropriate Torx key per the insert manufacturer specification sheet. Verify coolant port alignment with the machine spindle coolant supply before initiating a drilling cycle.
