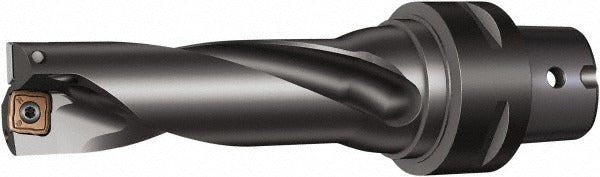

Sandvik Coromant 5765452 Indexable Insert Drill 3xd 24mm

Product Description

The SANDVIK COROMANT 5765452 is a CoroDrill 880 series indexable insert drill designed for high-productivity hole-making in metalworking applications. It accepts two indexable inserts and features a modular connection shank with a C5 interface, allowing fast tool changes on compatible machine spindles. The drill has a nominal diameter of 24mm, a maximum drill depth of 76mm, and a 3xD depth-to-diameter ratio. With coolant-through capability and a right-hand cutting direction, this drill is built for use on CNC machining centers and turning centers where controlled chip evacuation and thermal management are critical.

This drill is suited for production machining environments including aerospace, automotive, general engineering, and die-and-mold shops. It is installed and operated by machinists and CNC programmers working with milling machines or machining centers equipped with a C5 modular connection spindle interface. The CoroDrill 880 series is intended for high-feed drilling operations in steel, cast iron, and similar workpiece materials. Compatible inserts listed in the input data are 880-050305H-C-GM and 880-0503W05H-P-GM.

Key Features

• 24mm nominal drill diameter with a maximum drill diameter of 26.20mm
• 76mm maximum drill depth with a 3xD depth-to-diameter ratio
• Modular C5 connection for rapid, repeatable tool changes
• Coolant-through channels for effective chip evacuation and cutting edge cooling
• Takes two indexable inserts for economical cutting edge replacement
• Right-hand cutting direction; steel tool body construction

Compatibility

Compatible inserts for this drill body are 880-050305H-C-GM and 880-0503W05H-P-GM. The drill uses a C5 modular connection interface. It is part of the CoroDrill 880 series and is compatible with machine spindles and toolholders that accept the C5 modular standard.

Installation Notes

Installation and tool setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle and modular connection interface are clean and free of debris before mounting. Verify insert seating and torque per the toolholder manufacturer guidelines before running the spindle. Confirm coolant-through supply is active at the machine before beginning drilling operations to maintain proper chip flow and tool life.
