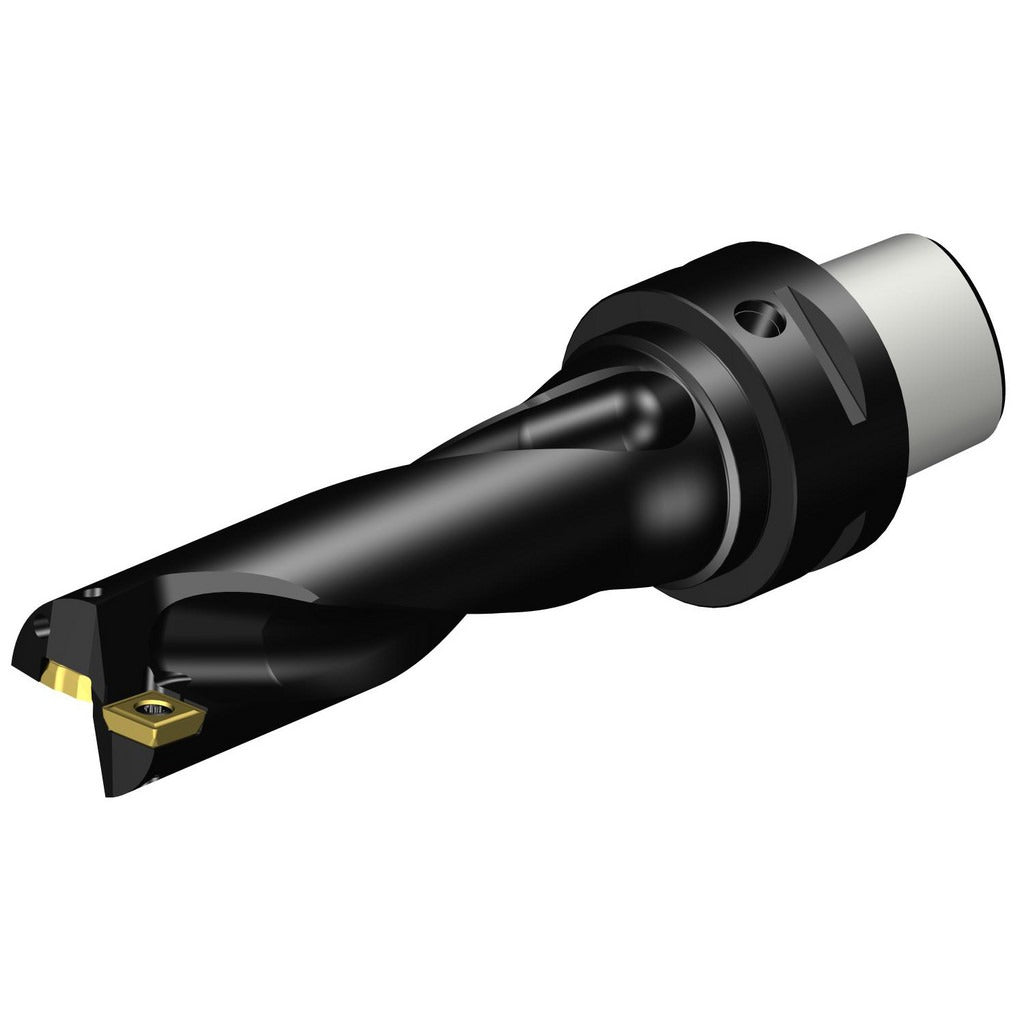

Sandvik Coromant 5765442 Indexable Insert Drill 25mm

Product Description

The SANDVIK COROMANT 5765442 is a steel-body indexable insert drill engineered for high-productivity hole-making in metalworking and machining operations. It accepts two indexable inserts and delivers a maximum drill depth of 3.1004 inches at a 3xD depth-to-diameter ratio, making it well suited for moderate-depth drilling cycles. The drill body has a 25mm (1.063 inch) maximum drill diameter and connects to the spindle via a Capto C4 modular connection with a 40mm (1.575 inch) shank diameter. Coolant-through capability supports chip evacuation and tool life at higher cutting speeds. Licensed machinists and CNC operators are the primary installers of this tooling.

This drill is designed for right-hand cutting and fits into modular tooling setups on CNC machining centers and turning centers equipped with a Capto C4 interface. The 3xD ratio and 3.685-inch flute length suit through-hole and blind-hole applications in steel, cast iron, and similar workpiece materials. It is a component of the CoroDrill 880 series and is sold as a single-unit tool body requiring compatible 880 series inserts purchased separately.

Key Features

• 25mm maximum drill diameter with 3xD depth-to-diameter ratio for moderate-depth hole cycles
• Capto C4 modular connection for quick changeover and high rigidity at the spindle interface
• Accepts 2 indexable inserts (3.00mm insert size) — inserts sold separately
• Coolant-through design promotes chip evacuation and extended insert life
• Right-hand cutting direction; steel tool body construction
• Flute length of 3.685 inches supports full-depth engagement within rated depth range

Compatibility

Compatible with drill style 880..Cx-03 inserts. Requires a Capto C4 modular connection interface on the machine spindle or toolholder. Part of the CoroDrill 880 series platform.

Installation Notes

Installation and setup should be performed by a qualified CNC machinist or tooling technician. Ensure the machine spindle is fully stopped and the control is in a safe state before mounting or removing the drill body. Verify that the Capto C4 interface and clamping mechanism meet the machine tool manufacturer's torque and seating specifications before operation. Confirm insert seating and screw engagement before initiating any cutting cycle.
