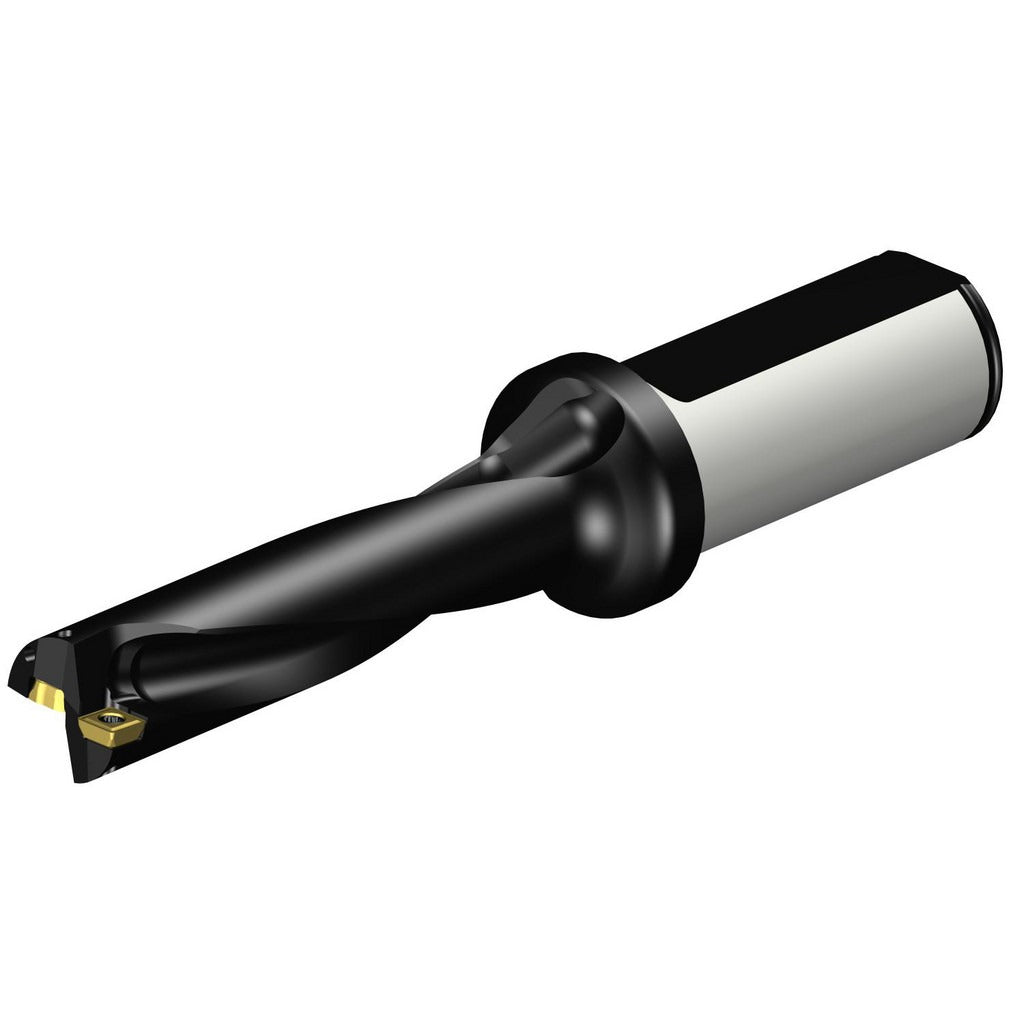

Sandvik Coromant 5765315 Indexable Insert Drill 18.5mm

Product Description

The SANDVIK COROMANT 5765315 is a straight-shank indexable insert drill engineered for high-productivity hole-making in metalworking applications. Built on the CoroDrill 880 platform, it accepts two indexable inserts and delivers a maximum drill depth of 3.04 inches at a 4xD depth-to-diameter ratio. The 18.5mm (0.7598 inch) cutting diameter and 25mm (0.9843 inch) straight cylindrical shank make it compatible with standard tool holders on CNC machining centers and lathes. Coolant-through capability supports chip evacuation and tool life at elevated feed rates. The body is constructed from steel. Right-hand cutting direction. This drill is installed and operated by machinists and CNC programmers in production and job-shop environments.

The 5765315 is suited for drilling operations in steel, cast iron, and similar workpiece materials on CNC vertical machining centers, horizontal machining centers, and turning centers with driven tooling. The 4xD ratio makes it appropriate for medium-depth holes where a solid carbide drill would be cost-prohibitive or where insert indexing is preferred for tooling economy. The straight cylindrical shank seats directly in ER collet chucks, hydraulic chucks, or shrink-fit holders sized for 25mm shanks. Coolant-through ports allow internal coolant delivery when the spindle and tool holder support it.

Key Features

• 18.5mm (0.7598 inch) maximum drill diameter with 4xD depth-to-diameter ratio
• Maximum drill depth of 3.04 inches; depth range 3.00 to 4.00 inches
• Accepts 2 indexable inserts in the 880..L-04 drill style format
• Coolant-through design for internal chip flushing and thermal management
• 25mm straight cylindrical shank fits standard CNC tool holders
• Right-hand cutting direction; steel body construction

Compatibility

Designed for use with CoroDrill 880 series indexable inserts in the 880..L-04 style. Insert size is 2.60mm (0.1024 inch). Specific compatible insert part numbers should be confirmed with SANDVIK COROMANT tooling documentation for the 880 platform.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the tool changer or turret is in a safe position before mounting or removing the drill body. Verify that the tool holder bore matches the 25mm shank diameter and that runout is within the tolerance required for the application. Indexable inserts must be seated correctly in their pockets and secured to the torque specification listed in the SANDVIK COROMANT tool assembly guide before cutting.
