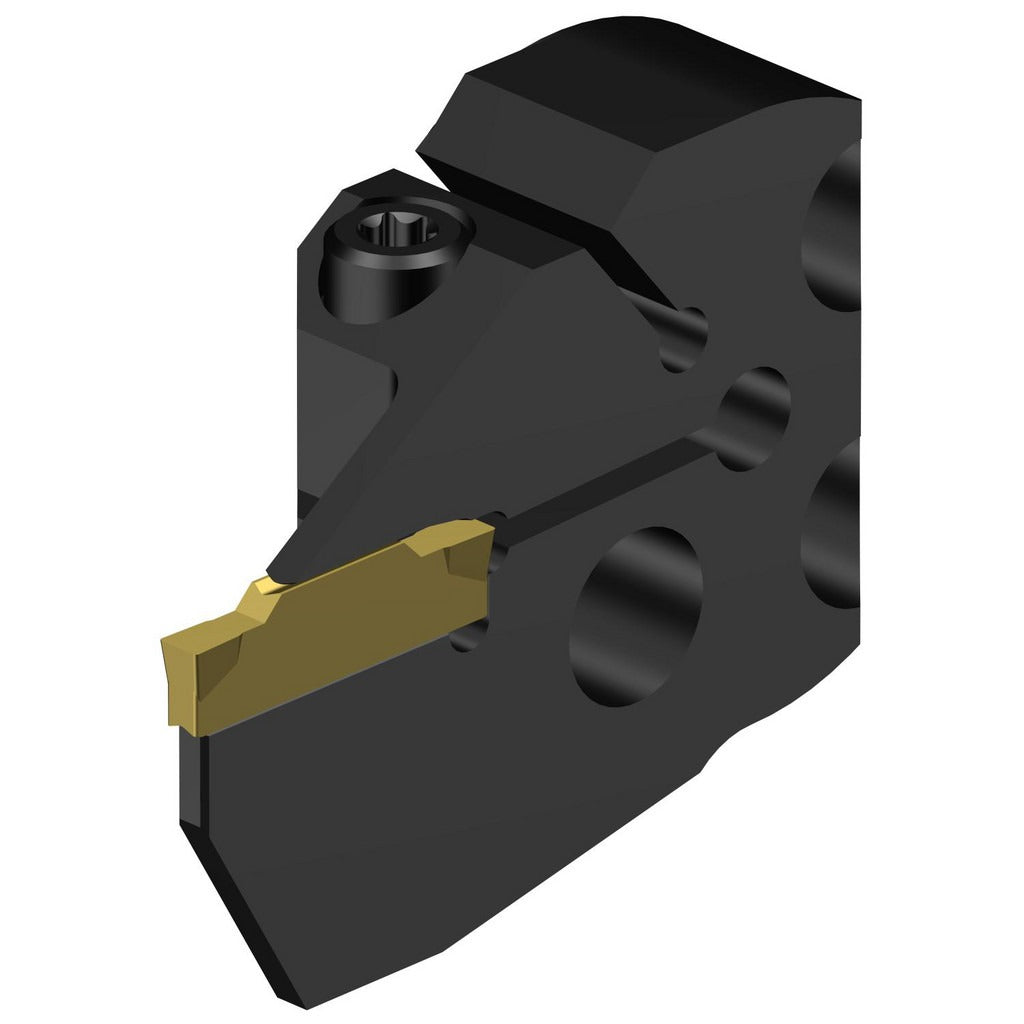

Sandvik Coromant 5764635 Modular Grooving Head Size 32

Product Description

The SANDVIK COROMANT 5764635 is a left-hand modular grooving head designed for use in the CoroCut 1-2 system at System Size 32. It accepts N123 Size F inserts and supports through-coolant delivery for effective chip evacuation and tool life in turning and grooving operations. The head projects 0.5512 inches from the coupling face and has a center-to-cutting-edge distance of 1.4705 inches. Maximum depth of cut is approximately 0.125 inches (3.17 mm), with a maximum groove width of 0.5906 inches (15.00 mm) and a minimum groove width of approximately 0.094 inches (2.39 mm). This component is installed by machinists and CNC turning specialists in precision grooving applications.

This modular grooving head is suited for external grooving and turning operations on CNC lathes and turning centers. The left-hand cutting direction makes it appropriate for right-to-left feed approaches or specific tool-post orientations. It is used in both production and job-shop environments where modular quick-change tooling systems reduce setup time. The CoroCut 1-2 system interface ensures repeatable positioning and rigid clamping when changing heads between operations.

Key Features

• Left-hand cutting direction for right-to-left feed or specific turret orientations
• Through-coolant capability for improved chip control and insert longevity
• System Size 32 modular interface for rigid, repeatable head changes
• Compatible with N123F2-0250-GM inserts (N123 Size F)
• Maximum groove width of 0.5906 inches (15.00 mm)
• Compact head length projection of 0.5512 inches (14.00 mm)

Compatibility

Compatible with N123 Size F inserts; complete insert compatibility confirmed for N123F2-0250-GM. Designed for use with CoroCut 1-2 Series System Size 32 modular tooling bodies.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before mounting or removing the modular head. Follow the tooling system torque and clamping procedures specified for the CoroCut 1-2 coupling. Verify insert seating and coolant port alignment before returning the machine to service.
