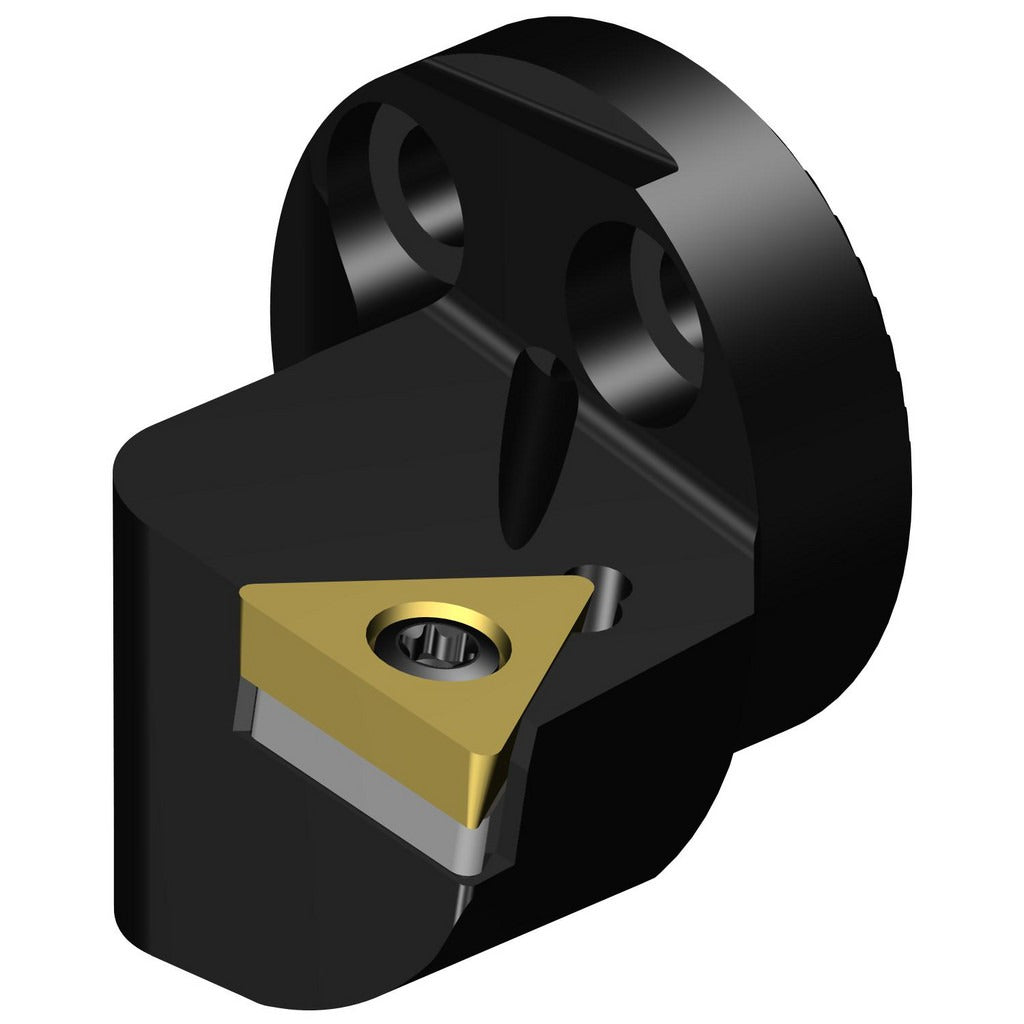

Sandvik Coromant 5764406 Modular Turning Head Size 32

Product Description

The SANDVIK COROMANT 5764406 is a modular turning profiling head engineered for internal turning operations on CNC lathes and machining centers. Part of the CoroTurn 107 series, this head accepts TCMT 16T308 inserts secured by a clamp and screw holding method. It features a size 32 head connection, a neck diameter of 1.26 inches (32 mm), and a head length projection of 1.26 inches (32 mm). Through-coolant capability directs fluid directly to the cutting zone, supporting tool life and chip evacuation during deep bore profiling work. The right-hand cutting direction suits standard spindle rotation on most turning platforms.

This profiling head is intended for internal turning and profiling in bored features. The minimum hole diameter it can enter is 1.57 inches (40 mm), and the maximum hole depth at this size is 1.26 inches (32 mm). It is suited for precision finish and semi-finish profiling passes in steel, stainless, and similar materials where consistent insert indexing and coolant delivery are required. Installation and setup are typically performed by CNC machinists or toolroom technicians configuring modular boring bar assemblies.

Key Features

• CoroTurn 107 series modular system with size 32 head connection for rigid tool assembly
• Accepts TCMT 16T308 inserts using clamp and screw holding method for repeatable indexing
• Through-coolant design directs coolant to the cutting edge for chip control and thermal management
• Right-hand cutting direction for standard CNC lathe spindle configurations
• Center to cutting edge of 0.87 inches (22 mm) for accurate bore profiling clearance
• Radial rake angle of -10 degrees for controlled cutting action on internal profiles

Compatibility

Compatible with size 32 CoroTurn 107 modular tool bodies. Uses TCMT 16T308 inserts. Designed as an OEM-style component within the SANDVIK COROMANT CoroTurn 107 modular turning system.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom personnel. Power down and lock out the machine before mounting or changing modular heads. Verify that the mating head connection and adaptor are the same system size before assembly. Follow the tool manufacturer torque guidelines for the clamping screw and confirm insert seating before running the spindle.
