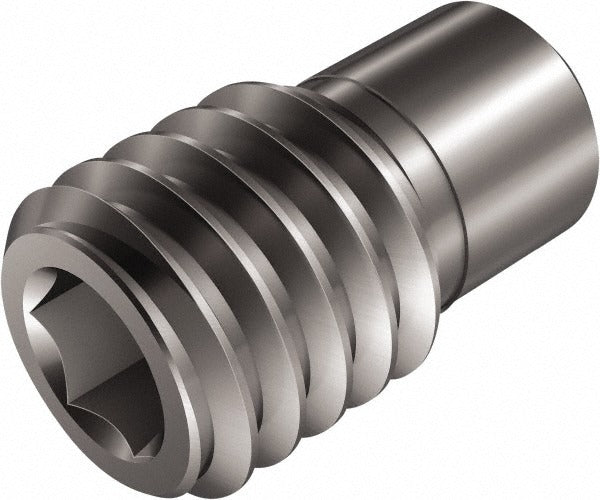

Sandvik Coromant 5764280 Coolant Nozzle Indexable Tools

Product Description

The SANDVIK COROMANT 5764280 is a coolant nozzle designed for use with indexable tooling systems in machining operations. It directs cutting fluid precisely to the cutting zone, helping to control heat and chip evacuation during turning, milling, or boring operations. The nozzle is compatible with the 5691 026 toolholder style and weighs 0.22 pounds. It is intended for installation by machinists and toolroom technicians working with Sandvik Coromant indexable tool assemblies in CNC or manual machine environments.

This coolant nozzle is suited for shops running indexable insert tooling where directed coolant delivery is required for tool life and surface finish control. It is designed for use with the 5691 026 toolholder style and is sold as an individual component, making it practical as a replacement or spare part in production and job-shop environments. Typical applications include metal cutting operations where high-pressure or flood coolant systems are in use.

Key Features

• Directed coolant delivery to the cutting zone for heat and chip control
• Compatible with the 5691 026 toolholder style
• Lightweight at 0.22 pounds for easy handling and installation
• Sold as a single unit, suitable for replacement or spare use
• Designed for use with indexable insert tooling systems

Compatibility

Designed for use with the 5691 026 toolholder style in SANDVIK COROMANT indexable tooling systems.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with indexable tooling assemblies. Ensure the machine spindle is stopped and all coolant flow is shut off before removing or replacing the nozzle. Verify that the nozzle is properly seated and secured in the toolholder before resuming machining operations. Confirm coolant port alignment after installation to ensure directed flow to the cutting edge.
