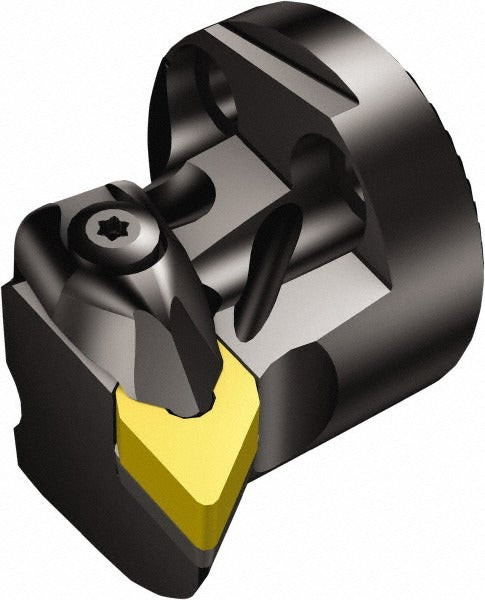

Sandvik Coromant 5764245 Modular Turning Head Size 32

Product Description

The SANDVIK COROMANT 5764245 is a modular turning profiling head designed for internal left-hand turning operations. Part of the T-Max P series, this head mounts to a compatible modular boring bar or toolholder via a Size 32 head connection. It accepts DNMG 110408 inserts secured by a wedge clamping method, delivering consistent insert location and rigidity during profiling passes. The head has a 32 mm head length projection and a 22 mm center-to-cutting-edge distance. Through-coolant capability directs fluid directly to the cutting zone, supporting extended tool life and chip evacuation in deep-bore applications. The unit weighs 0.29 pounds.

This profiling head is suited for internal turning and profiling of bores in ferrous and non-ferrous workpiece materials on CNC lathes and turning centers. The left-hand cutting direction makes it appropriate for specific spindle rotation and approach configurations. A minimum hole diameter of 40 mm and a maximum hole depth of 32 mm define the practical bore envelope for this head. It is installed by machinists and CNC turning technicians in production and job-shop environments requiring modular tooling flexibility.

Key Features

• T-Max P series modular system with Size 32 head connection for quick changeover
• Accepts DNMG 110408 inserts with wedge clamping for secure, repeatable seating
• Through-coolant design directs fluid to the cutting edge for improved chip control and tool life
• Left-hand cutting direction for internal profiling applications
• 32 mm head length projection and 22 mm center-to-cutting-edge distance
• Minimum hole diameter of 40 mm supports a range of bore sizes

Compatibility

Designed for use with SANDVIK COROMANT T-Max P series modular tooling systems at Size 32 head connection. Compatible insert style is DNMG 110408.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the toolholder is de-energized before mounting or removing the head. Follow the toolholder manufacturer torque and assembly guidelines for modular connection interfaces. Verify insert seating and wedge clamp engagement before running the first cut.
