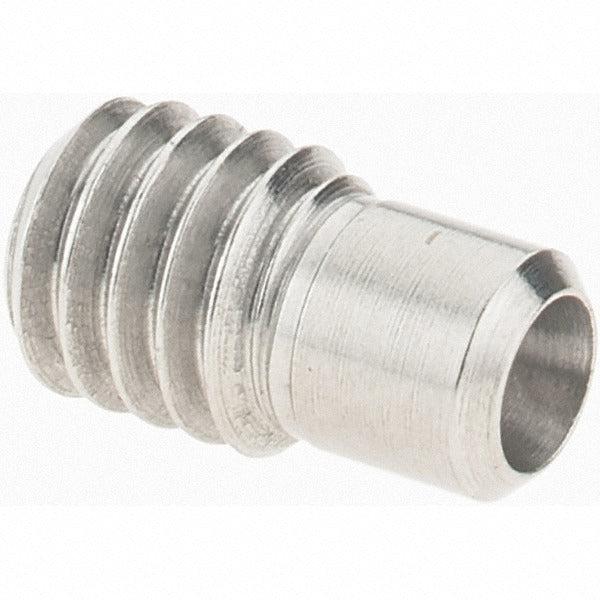

Sandvik Coromant 5764190 Coolant Hose Nozzle 3.25 Mm

Product Description

The SANDVIK COROMANT 5764190 is a round, straight coolant hose nozzle designed for precision coolant delivery in CNC turning applications. Part of the Coromant HP series, this single-piece nozzle features a 3.25 mm (approximately 3/64 inch inside diameter) bore and NPT threading for secure, leak-resistant connection to coolant supply lines. Its acid-resistant construction makes it suitable for use with a wide range of metalworking coolants and cutting fluids. Machining technicians and toolroom personnel install this nozzle when setting up high-pressure coolant systems on turning toolholders, where accurate coolant direction to the cutting zone improves tool life and chip evacuation.

This nozzle is designed for use with turning toolholders and is compatible with Coromant HP series coolant hose assemblies. It is well suited for production turning environments — both light-duty job shop work and higher-volume production cells — where directed high-pressure coolant is required at the insert. The single-hole design concentrates coolant flow precisely at the cutting edge, supporting consistent performance across a range of workpiece materials and insert grades.

Key Features

• Round, straight nozzle profile for direct coolant flow to the cutting zone
• 3.25 mm nozzle diameter (3/64 inch inside diameter) for controlled flow rate
• NPT thread standard for reliable, standardized connection to coolant lines
• Acid-resistant construction compatible with common metalworking coolants and cutting fluids
• Part of the Coromant HP high-pressure coolant series
• Single-piece, single-hole design — sold and packaged individually

Compatibility

Designed for use with turning toolholders in the Coromant HP series coolant system.

Installation Notes

Installation is performed by qualified machining technicians or toolroom personnel. Before replacing or adjusting coolant nozzles, shut off the machine spindle and isolate the coolant supply pressure completely. Use appropriate thread sealant rated for coolant systems when making NPT connections, and verify there are no leaks before resuming operation. Torque fittings to the toolholder manufacturer's specified values and confirm nozzle orientation is aimed at the insert cutting edge prior to test-running.
