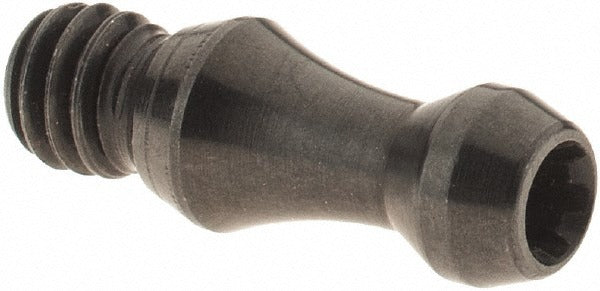

Sandvik Coromant 5763230 Cap Screw Torx Plus M4

Product Description

The SANDVIK COROMANT 5763230 is a Torx Plus cap screw designed to secure indexable inserts in toolholders used for precision machining applications. Manufactured to M4 thread specifications and conforming to industry standard 5513 026-03, this screw delivers consistent clamping force for insert retention across a wide range of turning and milling toolholder systems. The Torx Plus drive geometry reduces driver cam-out and provides more reliable torque transfer than standard hex or slotted drives. Licensed machinists, CNC operators, and toolroom technicians install this type of hardware as part of routine insert indexing and replacement procedures.

This cap screw is suited for use with indexable toolholders in both manual and CNC machining environments, including turning centers and milling setups. It is sold individually but must be ordered in multiples of 5 per the minimum order quantity requirement. Typical applications include re-securing worn insert seats and replacing damaged or stripped clamping screws during toolholder maintenance in production and job-shop settings.

Key Features

• M4 thread size conforming to industry standard 5513 026-03
• Torx Plus drive type reduces cam-out during tightening
• Designed for indexable insert clamping in toolholders
• Compact hardware for use in high-precision cutting tool assemblies
• Minimum order quantity of 5 units supports stocking for ongoing maintenance

Compatibility

Designed for use with indexable toolholders as specified by the hardware compatibility designation in the product attributes. Confirm thread engagement and drive size match existing toolholder insert pocket specifications before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with indexable tooling systems. Power down and lock out the machine before servicing any toolholder. Use the correct Torx Plus bit sized for the M4 screw head to avoid stripping the drive recess. Do not exceed the torque specification published in the toolholder manufacturer's documentation for M4 insert clamping screws.
