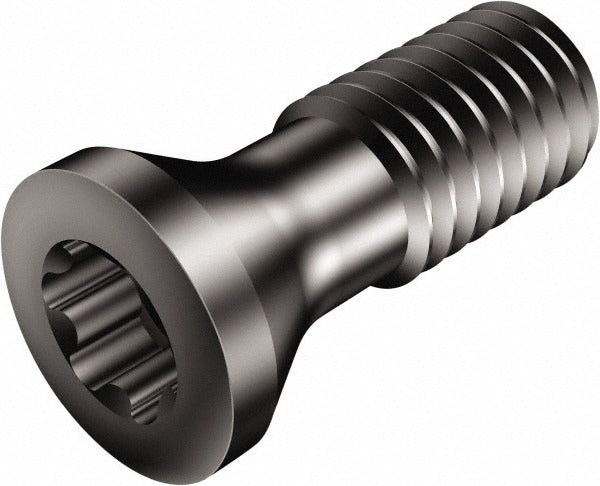

Sandvik Coromant 5763200 Cap Screw Torx Plus M2.2

Product Description

The SANDVIK COROMANT 5763200 is a cap screw designed for securing indexable inserts in cutting toolholders. It uses a Torx Plus drive and an M2.2 thread specification, making it a precision fastener for indexable tooling systems. This screw replaces worn or damaged insert-retention hardware, restoring proper clamping force to the insert pocket. Installation is performed by CNC machinists, toolroom technicians, and lathe or milling machine operators as part of routine insert changeover. The M2.2 thread size is specific to indexable toolholder designs and requires the correct Torx Plus key for proper seating.

This cap screw is used in metal cutting applications where indexable carbide inserts are clamped into toolholders on lathes, milling machines, and similar CNC or manual cutting equipment. It is suited for both production shop and toolroom environments. The part matches industry standard number 5513 020-47, which is a common reference for indexable screw hardware in toolholder assemblies across multiple cutting tool platforms.

Key Features

• M2.2 thread size engineered for indexable insert clamping screws
• Torx Plus drive reduces cam-out risk during high-frequency insert changes
• Industry standard number 5513 020-47 for cross-reference identification
• Compatible with toolholder hardware applications as classified under UNSPSC 31161500
• Sold individually; minimum order quantity of 10 units per order

Compatibility

Designed for use with toolholder hardware requiring M2.2 Torx Plus cap screws. Matches industry standard number 5513 020-47. Consult your toolholder documentation to confirm screw specification before ordering.

Installation Notes

This fastener is installed by machinists and toolroom technicians during indexable insert changeover. Always use a calibrated Torx Plus key of the correct size to avoid stripping the drive recess. Ensure the toolholder insert pocket is clean and free of chips before seating the screw. Do not reuse screws that show thread damage or deformation, as proper clamping torque is critical to insert retention and cutting safety.
