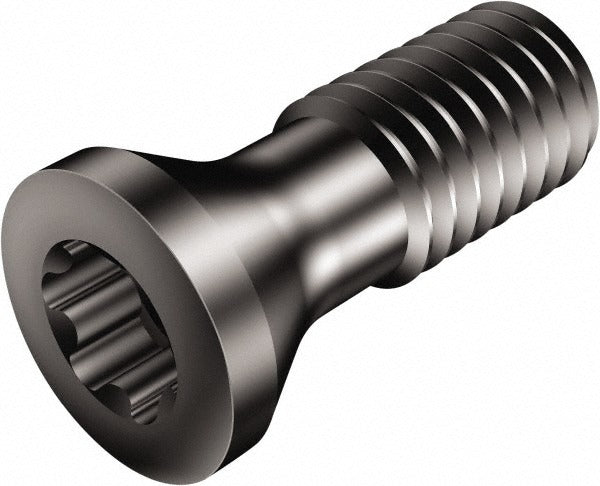

Sandvik Coromant 5763186 Cap Screw Torx Plus M3

Product Description

The SANDVIK COROMANT 5763186 is a Torx Plus drive cap screw designed for securing indexable inserts in cutting toolholders. It uses an M3 thread and is built to the precision tolerances required for indexable tooling systems used in metal cutting operations. The Torx Plus drive interface provides positive engagement and reduces cam-out during installation and removal, which is critical when working in tight tool pockets. Machinists, toolroom technicians, and CNC setup personnel install these screws as part of routine insert changes. The screw weighs 0.25 pounds per package.

This cap screw is used in milling, turning, and boring applications where indexable carbide inserts are retained by a clamping screw. It is appropriate for use in production machining environments, toolroom setups, and repair scenarios where an original insert retention screw has been stripped or lost. The M3 thread size is common across a wide range of indexable toolholder bodies. Industry standard number 5513 020-64 applies to this screw.

Key Features

• M3 thread size for compatibility with standard indexable toolholder insert pockets
• Torx Plus drive type provides positive torque transfer and reduces drive recess wear
• Manufactured to Industry Standard Number 5513 020-64
• UNSPSC Code 31161500 for procurement and catalog classification
• Minimum order quantity of 10 units supports stocking for high-frequency insert change operations

Compatibility

Designed for use with indexable toolholder bodies requiring an M3 Torx Plus cap screw for insert retention. Hardware compatibility is specified for toolholder applications per supplier data.

Installation Notes

Installation and replacement of indexable insert screws is typically performed by a machinist or toolroom technician. Always power down and lock out the machine before changing inserts or retention screws. Use a calibrated Torx Plus key of the correct size to avoid rounding the drive recess. Do not exceed the toolholder manufacturer's recommended clamp torque for M3 insert screws, and inspect the threaded bore of the toolholder for damage before installing a replacement screw.
