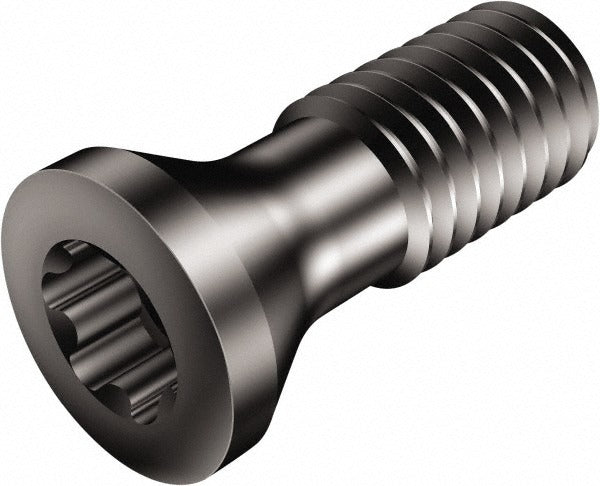

Sandvik Coromant 5763106 Cap Screw Torx Plus M5

Product Description

The SANDVIK COROMANT 5763106 is a cap screw designed for securing indexable inserts in toolholders used in metal cutting and machining operations. It features a Torx Plus drive and an M5 thread size, providing reliable clamping force and resistance to cam-out during installation and removal. This screw is a direct replacement component used to maintain cutting tool assemblies on the shop floor. Machinists and tool crib technicians install these screws when replacing worn or damaged insert-clamping hardware on turning, milling, or boring toolholders.

This cap screw is suited for use in CNC machining centers, turning centers, and manual lathes wherever SANDVIK COROMANT-compatible indexable toolholders are in service. It is a standard replacement fastener for production environments that rely on frequent insert indexing and require consistent, repeatable torque on insert-clamping screws. Industry standard number 5513 016-01 identifies the specification this screw conforms to.

Key Features

• Torx Plus drive design reduces cam-out risk during tightening and removal
• M5 thread size for compatibility with indexable toolholder insert pockets
• Conforms to industry standard number 5513 016-01
• Designed as a direct hardware replacement for indexable toolholders
• Sold individually; minimum order quantity of 10 units

Compatibility

Designed for use with indexable toolholders as a replacement cap screw. Compatible hardware type is toolholder per manufacturer specification. Specific compatible toolholder model numbers were not provided in the available data.

Installation Notes

Installation is performed by machinists or tool crib personnel using a calibrated Torx Plus driver or torque wrench set to the toolholder manufacturer-specified torque value. Always de-energize and lock out the machine before servicing any cutting tool assembly. Do not substitute a standard Torx driver for a Torx Plus fastener, as this can damage the drive recess. Inspect the screw and insert pocket threads for damage before reinstalling.
