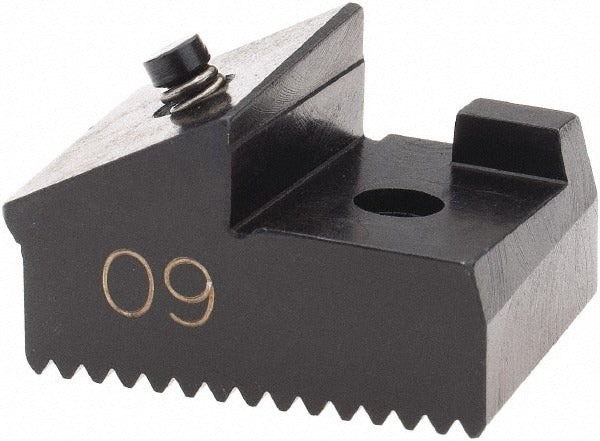

Sandvik Coromant 5762782 Indexable Milling Cassette

Product Description

The SANDVIK COROMANT 5762782 is an indexable milling cassette designed for use with CoroMill 331 slotting mill toolholders. It accepts the N331.1A-14 insert style and is compatible with R/L331.52..Txx toolholder styles. This cassette serves as a precision locating and clamping body that holds indexable inserts in position during milling operations. It is installed and replaced by machinists and tooling technicians as part of routine insert management on CoroMill 331 assemblies. The cassette measures 0.71 inches in length, 0.47 inches in width, and 0.25 inches in height, and weighs 0.25 pounds.

This cassette is intended for slotting mill applications within the CoroMill 331 series platform. It is suited for metalworking environments where repeatable insert positioning and consistent slot geometry are required. Typical applications include slotting and groove milling operations on milling machines and machining centers in both job shop and production settings. The cassette is sold individually and is a direct replacement component within the CoroMill 331 toolholder system.

Key Features

• Accepts N331.1A-14 indexable insert style for reliable insert retention
• Compatible with R/L331.52..Txx toolholder style for CoroMill 331 assemblies
• Designed for slotting mill applications requiring consistent positioning
• Compact form factor: 0.71 inches long, 0.47 inches wide, 0.25 inches high
• Sold as a single-unit replacement cassette (package quantity of 1)

Compatibility

Compatible with R/L331.52..Txx toolholder style and N331.1A-14 insert style within the CoroMill 331 series slotting mill platform.

Installation Notes

Installation and replacement of indexable milling cassettes should be performed by qualified machinists or tooling technicians with the machine fully powered down and the spindle locked. Use appropriate torx or hex keys as specified by the toolholder assembly instructions. Ensure the cassette seating surface is clean and free of chips before installation to maintain insert positioning accuracy. Follow the toolholder manufacturer's assembly sequence to achieve proper clamping force on the insert.
