Sandvik Coromant 5762566 Indexable Toolholder Shim

Product Description

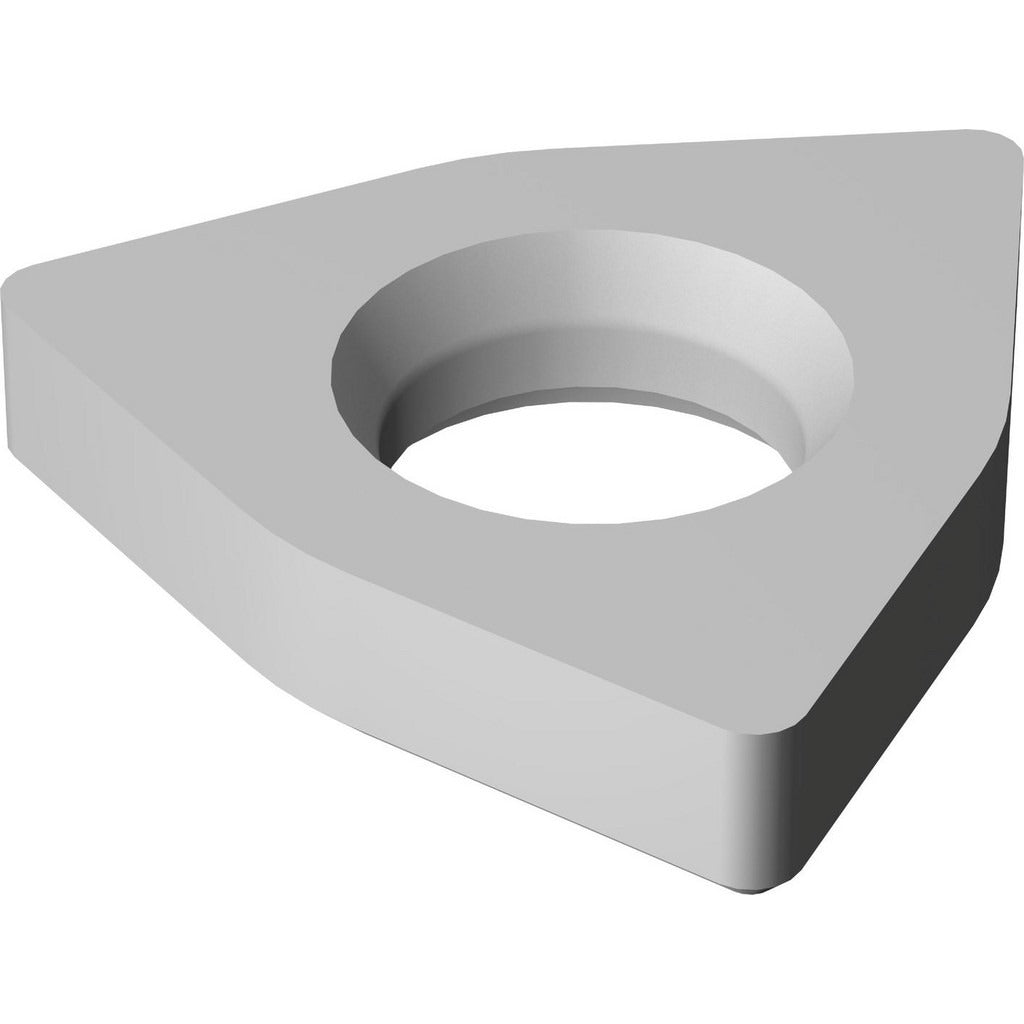

The SANDVIK COROMANT 5762566 is an indexable toolholder shim designed to provide precise seating and support for indexable inserts in turning and boring toolholders. Shim style 5322 331 (catalog number 5322 331-06), this component measures 3/8 inch inscribed circle with a thickness of 3/16 inch (0.1875 inches). It is configured for positive rake geometry and supports both left-hand and right-hand cutting directions. Machinists and toolroom technicians install this shim beneath the indexable insert to protect the toolholder pocket, maintain consistent insert height, and extend toolholder service life across production turning operations.

This shim is suited for use in metal cutting environments where toolholder pocket wear or damage requires a precision replacement seating component. It is applicable to toolholders accepting a 3/8 inch inscribed circle insert, with positive rake configuration. Typical installation scenarios include CNC turning centers and manual lathes in job shops, production facilities, and maintenance toolrooms. The part ships individually (package quantity of 1) and is sold in minimum order quantities of 10 units.

Key Features

• Shim style 5322 331 (catalog number 5322 331-06) for precise toolholder pocket fit
• 3/8 inch inscribed circle (0.3750 inches) compatible with standard indexable insert seating
• 3/16 inch thickness (0.1875 inches) for consistent insert height positioning
• Positive rake geometry to match rake-angle toolholder configurations
• Supports both left-hand and right-hand cutting directions
• Protects toolholder pocket from insert-induced wear, reducing replacement frequency

Compatibility

Designed for use with indexable toolholders accepting a 3/8 inch inscribed circle insert with positive rake geometry and shim style 5322 331 seating. Specific toolholder model compatibility should be verified against the SANDVIK COROMANT 5322 331-06 catalog reference prior to installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and locked out per applicable lockout/tagout procedures. Inspect the toolholder pocket for debris or damage before seating the shim. Do not force the shim into the pocket; confirm insert circle size and shim style match the toolholder specification before assembly. Torque the insert clamp screw to the toolholder manufacturer specification found in the toolholder documentation.
