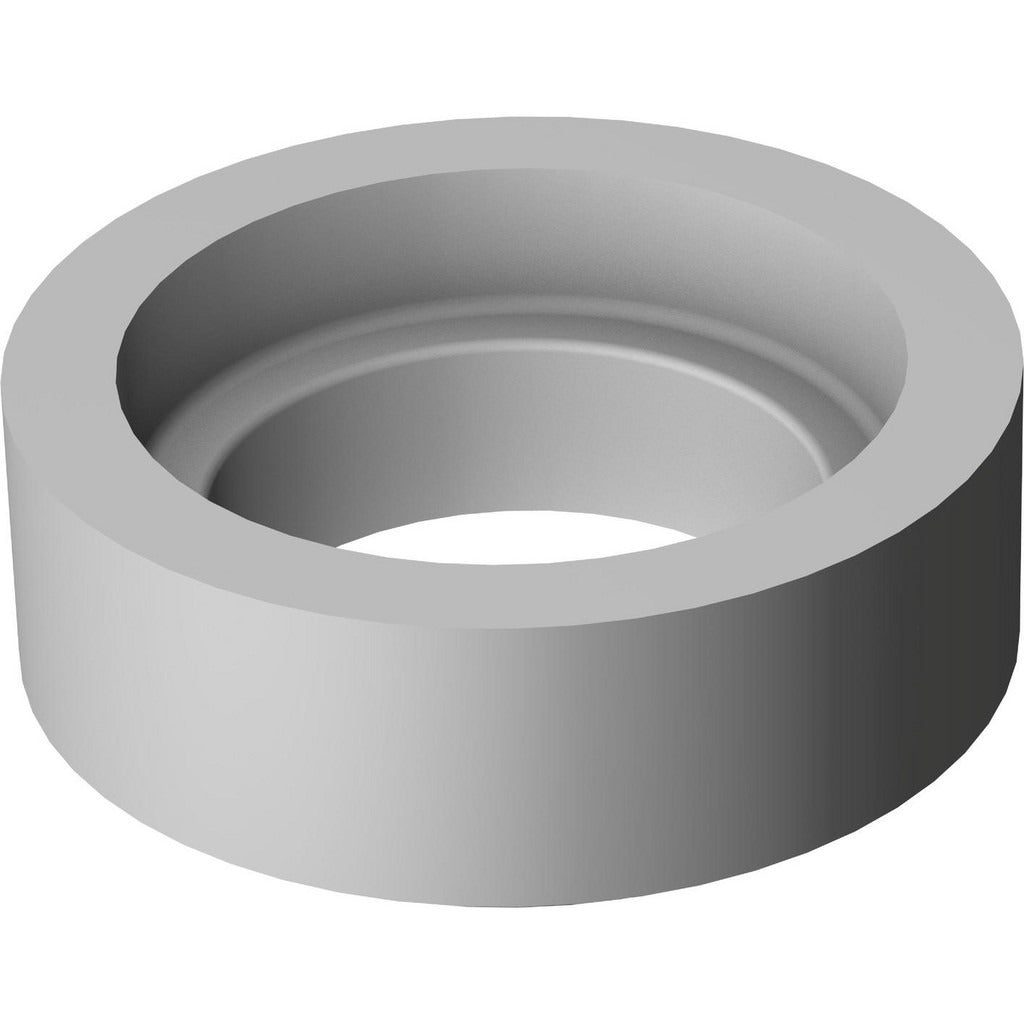

Sandvik Coromant 5762420 Indexable Shim 0.4724 in Ic

Product Description

The SANDVIK COROMANT 5762420 is a precision shim designed for indexable toolholder assemblies. It seats beneath the insert to establish correct cutting geometry and maintain consistent tool height across insert changes. This shim follows the 5322 110 shim style with a positive rake configuration, making it compatible with left-hand, neutral, and right-hand cutting directions. At 0.1875 inches (3/16 inch) thick and sized for a 0.4724-inch inscribed circle, it provides a reliable seating surface in demanding turning and boring applications. Installation is performed by machinists and toolroom technicians during toolholder setup or insert changeover.

This shim is suited for use in production turning, facing, and boring operations where consistent insert seating geometry is critical. The 5322 110 shim style fits toolholders designed around that seat geometry. The positive rake profile supports chip flow and cutting force management in standard metal-cutting applications. Shops running high-volume operations benefit from keeping replacement shims on hand to minimize downtime during scheduled insert changes. The catalog number for this shim is 5322 110-02.

Key Features

• 5322 110 shim style for precise insert seating in compatible toolholders
• Positive rake geometry supports efficient cutting action and chip control
• Compatible with left-hand, neutral, and right-hand cutting directions
• 0.1875-inch thickness maintains consistent tool height after insert indexing
• Sized for a 0.4724-inch inscribed circle insert seat

Compatibility

Designed as an OEM-style replacement shim for indexable toolholders requiring the 5322 110 shim seat style with a 0.4724-inch inscribed circle and 3/16-inch thickness.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians during insert setup or toolholder maintenance. Power down and lock out the machine before accessing the toolholder. Use the appropriate torx or hex key as specified by the toolholder manufacturer when securing the clamping screw. Inspect the shim seat and shim surface for debris or damage before seating to ensure accurate insert positioning.
