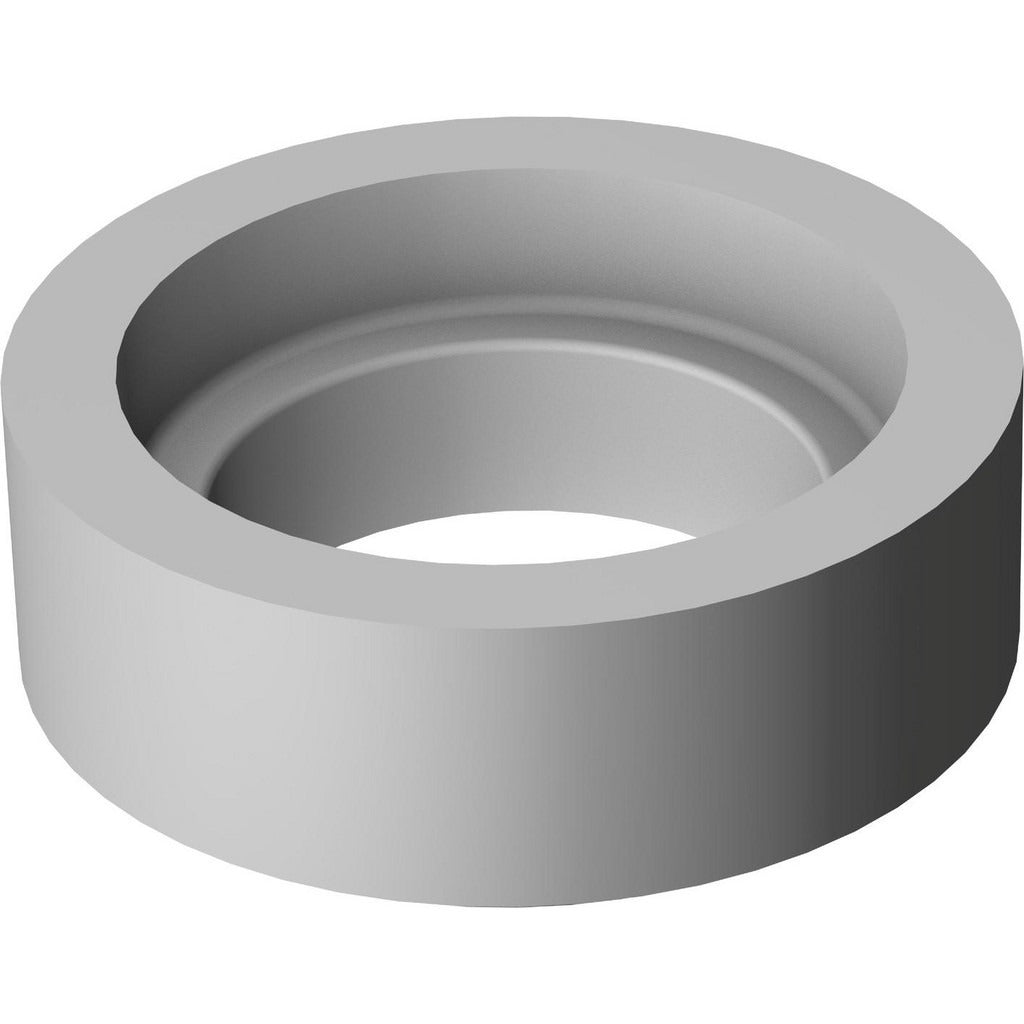

Sandvik Coromant 5762418 Indexable Toolholder Shim

Product Description

The SANDVIK COROMANT 5762418 is a replacement shim designed for use with indexable toolholders in metal cutting and turning applications. It corresponds to the 5322 110 shim style and is engineered to support positive rake insert seating. At 0.1563 inches thick (nominal 1/64 inch) and sized for a 0.3937 inch inscribed circle, this shim provides a precise, stable seat for indexable inserts in the toolholder pocket. It is compatible with left hand, neutral, and right hand cutting directions, making it a versatile stocking item for shops running multiple toolholder configurations. Installation and replacement are performed by machinists and toolroom technicians during insert changes or toolholder maintenance.

This shim is used in CNC turning, boring, and general metal cutting operations where indexable carbide inserts are seated in steel toolholders. The 5322 110 shim style is a recognized configuration in standard indexable toolholder systems. It is well suited to production environments, job shops, and toolrooms that maintain inventory of common shim sizes to support fast insert changeover and consistent pocket geometry across multiple setups.

Key Features

• 5322 110 shim style for use with compatible indexable toolholders
• 0.3937 inch inscribed circle (IC) sizing
• 0.1563 inch thickness (1/64 inch nominal) for precise insert seating
• Positive rake configuration supports optimal insert contact
• Compatible with left hand, neutral, and right hand cutting directions
• Sold individually; minimum order quantity of 10 per order

Compatibility

Designed as a replacement shim for indexable toolholders requiring the 5322 110 shim style with a 0.3937 inch inscribed circle. The manufacturers catalog number for this shim is 5322 110-01. Confirm toolholder pocket specifications before ordering to ensure proper fit.

Installation Notes

Shim replacement and inspection should be performed by a qualified machinist or toolroom technician. Always power down and de-energize the machine tool before accessing the toolholder pocket. Remove the insert clamping screw and insert before removing or replacing the shim. Inspect the toolholder pocket and seating surface for wear or damage before installing a new shim, and ensure proper seating before reinstalling the insert and clamping hardware.
