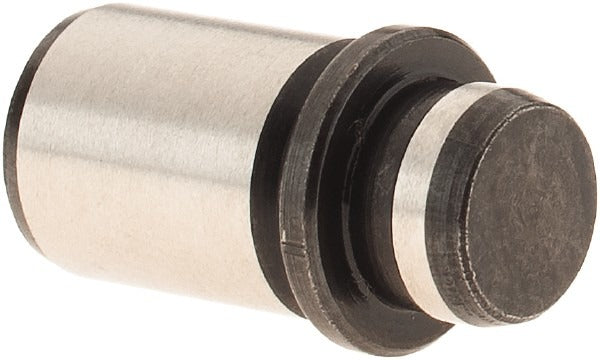

Sandvik Coromant 5762265 Shim Pin Indexable Turning T-max P

Product Description

The SANDVIK COROMANT 5762265 is a shim pin designed for use with indexable turning toolholders in the T-Max P series. This small but critical component seats beneath the cutting insert, providing a stable and repeatable foundation that protects the toolholder pocket from wear and damage during turning operations. The pin measures 0.0397 inches overall length with a pin diameter of 0.2360 inches and accommodates inserts with a 1/2 inch inscribed circle. Licensed machinists and toolroom technicians specify this part to maintain insert positioning accuracy and extend toolholder service life in production and job-shop turning environments.

This shim pin is suited for metal-cutting turning operations where T-Max P indexable toolholders are in service. Typical applications include external turning on CNC lathes and manual turning centers in both production and maintenance machining environments. The T-Max P system is a common platform in shops running steel, stainless, cast iron, and non-ferrous materials. This pin is compatible with 5513 022-03 clamps as specified by the manufacturer.

Key Features

• Designed for T-Max P series indexable turning toolholders
• Accommodates inserts with a 1/2 inch inscribed circle
• Pin diameter of 0.2360 inches for precise seat engagement
• Overall length of 0.0397 inches for correct pocket depth fit
• Compatible with 5513 022-03 clamps per manufacturer specification
• Protects toolholder pocket from direct insert contact and wear

Compatibility

Compatible with 5513 022-03 clamps used in SANDVIK COROMANT T-Max P series indexable turning toolholders accepting a 1/2 inch inscribed circle insert.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and the toolholder removed from the turret or tool post. Ensure the shim pocket is clean and free of chips or debris before seating the pin. Do not force the pin into position; correct fit requires no excessive pressure when the pocket and pin diameters are properly matched. Inspect the shim pin for wear or damage at each insert change interval.
