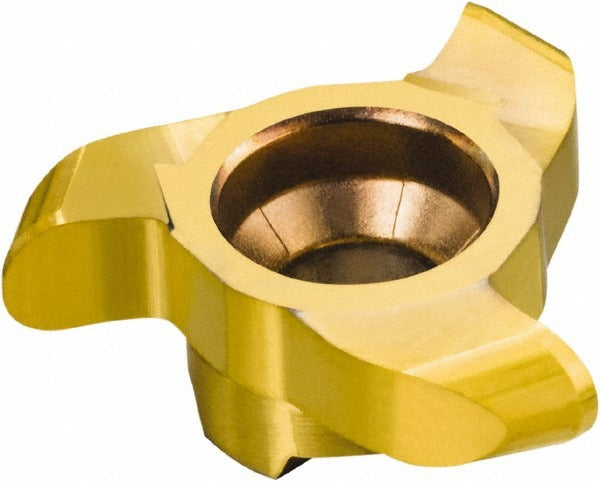

Sandvik Coromant 5758835 Groove Milling Tip Carbide 1025

Product Description

The SANDVIK COROMANT 5758835 is a replaceable groove milling tip designed for use in CoroMill 327 series milling systems. Made from solid carbide with a PVD-applied TiAlN and TiN coating, this right-hand insert delivers reliable groove milling performance across a wide range of workpiece materials. It carries manufacturer grade 1025 and features 3 flutes with a 90-degree lead angle and 90-degree included angle. The cutting diameter measures 0.8543 inches, maximum depth of cut is 0.1772 inches, and the functional length is 0.2264 inches. Licensed HVAC machinists and precision metalworking shops rely on tooling of this class for repeatable, tight-tolerance groove profiles.

This insert is suited for groove milling operations in both production and job-shop environments. It handles a broad spectrum of primary workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, and superalloys and titanium, covering material codes P, M, K, N, and S. Material grade coverage spans P10 through P30, M10 through M20, S10 through S20, and N10 through N20. The 327R12-22 20010-RM insert style seats into CoroMill 327 compatible cutter bodies designed for the R12-22 20010 insert size. It conforms to ANSI standards and is packaged individually with a minimum order quantity of 2.

Key Features

• Carbide substrate with PVD coating combining TiAlN and TiN for wear resistance and heat management
• 3-flute geometry with 90-degree lead angle for clean groove profiles
• Maximum depth of cut of 0.1772 inches at a cutting width of 0.8543 inches
• Right-hand cut orientation with common chipbreaker designation
• Compatible with steel, stainless steel, cast iron, non-ferrous metals, and superalloys and titanium
• Conforms to ANSI standards; insert size R12-22 20010

Compatibility

Designed for use in CoroMill 327 series cutter bodies accepting insert size R12-22 20010. Suitable for workpiece material codes P, M, K, N, and S as defined by the input data.

Installation Notes

Installation of replaceable milling tips should be performed by a qualified machinist or tooling technician with the machine fully de-energized and locked out per applicable safety procedures. Use the correct torque wrench and seating tool specified for the CoroMill 327 cutter body to avoid seat damage or insert fracture. Inspect the pocket seat for chips or debris before seating the insert. Do not use worn or damaged cutter bodies, as improper seating increases the risk of insert breakage during operation.
