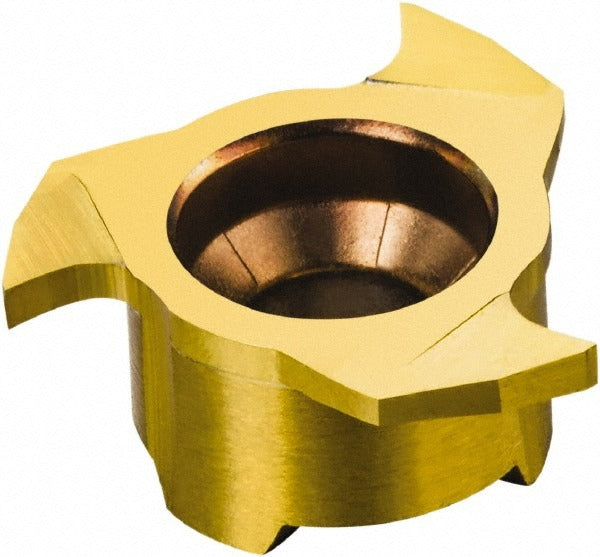

Sandvik Coromant 5758763 Groove Milling Tip Carbide 3 Flute

Product Description

The SANDVIK COROMANT 5758763 is a carbide replaceable milling tip engineered for groove milling operations in the CoroMill 327 series. Designed for right-hand cutting, it carries a PVD-applied TiAlN and TiN dual coating for extended tool life across a broad range of workpiece materials. The tip features 3 flutes and a maximum depth of cut of 1.5 mm (0.0591 inches), with a cutting diameter of 0.3818 inches and a cutting width of 0.3818 inches. A 90-degree lead angle and 90-degree included angle promote clean, square-shouldered groove profiles. Licensed machinists and CNC tooling technicians working in production or job-shop environments install this tip as a quick-change replacement within the CoroMill 327 modular milling system.

This replaceable tip is suited for groove milling in both roughing and finishing applications across steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It carries ISO material group codes P, M, K, N, and S, with material grades spanning P10 through P30, M10 through M20, S10 through S20, and N10 through N20. The CoroMill 327 series is commonly used in CNC machining centers for high-precision grooving where repeatable tip indexing and consistent groove geometry are required. This tip conforms to ANSI standards.

Key Features

• Carbide substrate with PVD-applied TiAlN and TiN coating for wear resistance across multiple material groups
• 3-flute geometry with 90-degree lead angle for square groove profiles
• Maximum depth of cut: 0.0591 inches (1.5 mm)
• Cutting diameter and cutting width: 0.3818 inches each
• Right-hand cutting orientation; corner radius of 0.0078 inches
• Compatible with CoroMill 327 series modular milling bodies

Compatibility

Designed as a direct replaceable tip for CoroMill 327 series milling bodies; insert size designation R06-10 25002 as specified by the manufacturer.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing the tip. Use the manufacturer-recommended torque driver for the CoroMill 327 clamping system to ensure proper tip seating. Do not exceed the specified depth-of-cut limit of 0.0591 inches to avoid premature tip failure or workpiece damage.
