Sandvik Coromant 5757809 Eccentric Pin Indexable Tools

Product Description

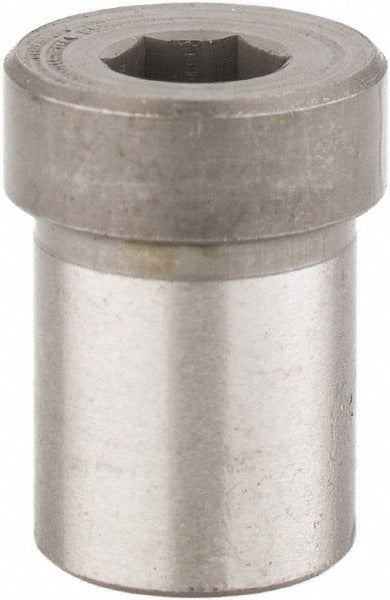

The SANDVIK COROMANT 5757809 is an eccentric pin designed for use with indexable turning and milling tool assemblies. This small-format clamping component secures cutting inserts within compatible toolholders by providing precise rotational adjustment during insert indexing. The pin features a 4mm hex socket drive and is engineered to work with a 1/2 inch inscribed circle insert geometry. At 0.47 inches in length and 0.35 inches in both height and width, it is a compact, precision-machined part that weighs approximately 0.25 pounds per package. Installation and replacement are performed by toolroom technicians and machining professionals during scheduled insert changes or toolholder maintenance.

This eccentric pin is suited for indexable milling and turning applications where consistent insert clamping force and repeatable positioning are required. It is typically found in production machining environments, job shops, and maintenance operations where Sandvik Coromant modular tooling systems are in use. The 5757809 corresponds to industry standard number 365.2-874 and is sold individually with a minimum order quantity of 5 units per transaction.

Key Features

• Eccentric pin design enables precise insert positioning during indexing cycles
• 4mm hex socket drive for standard hex key installation and removal
• Compatible with 1/2 inch inscribed circle insert geometry
• Compact form factor: 0.47 inches length x 0.35 inches height x 0.35 inches width
• Corresponds to industry standard number 365.2-874 for cross-reference sourcing
• Compatible insert reference: N260.8-1204-F

Compatibility

Compatible with 365.2-874 clamps and the N260.8-1204-F complete insert as specified by the manufacturer. Designed for use in Sandvik Coromant indexable milling and turning toolholder systems requiring a 1/2 inch inscribed circle eccentric pin.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians during insert indexing or toolholder servicing. Ensure the machine spindle is fully stopped and the toolholder is secured or removed from the machine before replacing clamping components. Use a calibrated 4mm hex key to seat and adjust the eccentric pin. Follow the toolholder manufacturer's torque and clamping procedures as outlined in the applicable tooling documentation.
