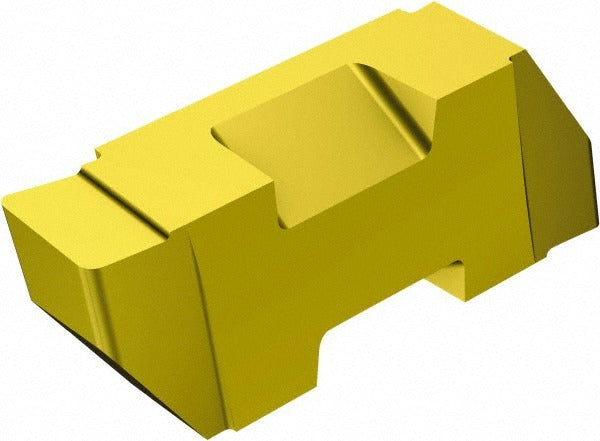

Sandvik Coromant 5753744 Grooving Insert TLGP3 2135 Solid Carbide

Product Description

The SANDVIK COROMANT 5753744 is a solid carbide grooving insert designed for precision external grooving operations on CNC lathes and turning centers. It features a TiCN/Al2O3/TiN multilayer MT-CVD coating for extended tool life in steel and cast iron applications. The insert has a 2.39 mm (0.0940 inch) cutting width and a maximum depth of cut of 3.81 mm (0.1500 inch). The right-hand orientation and neutral rake geometry suit standard turning setups. Machining professionals and toolroom technicians install this insert as part of the Top Lok series tooling system for repeatable, accurate groove production.

This insert is suited for grooving operations in production turning environments, including light manufacturing, job shops, and aerospace or automotive component machining. It fits into Top Lok series toolholders that accept size 3 inserts. The ISO code TLGP-3094R 2135 and catalog number TLGP-3094R 2135 can be used to confirm toolholder compatibility. Its multi-use designation allows it to be used across a range of grooving applications within the supported depth-of-cut range of 3.00 mm to 4.00 mm.

Key Features

• Solid carbide substrate with MT-CVD TiCN/Al2O3/TiN multilayer coating for wear resistance
• 2.39 mm cutting width with a corner radius of 0.19 mm (0.0075 inch)
• Maximum depth of cut 3.81 mm (0.1500 inch); depth-of-cut range 3.00 mm to 4.00 mm
• Neutral rake angle of 10 degrees for stable cutting action
• Right-hand insert orientation; size 3 seat designation
• Multi-use rated for versatility across compatible Top Lok toolholders

Compatibility

Designed for use with Top Lok series toolholders accepting a size 3 insert seat. ISO code TLGP-3094R 2135 and catalog number TLGP-3094R 2135 should be used to confirm holder compatibility before installation.

Installation Notes

Insert changes should be performed by a qualified machining technician with the machine powered down and spindle locked. Use the appropriate torx or clamping key specified by the toolholder manufacturer when seating the insert; do not overtighten the clamping screw. Confirm insert orientation and seating before resuming cutting operations. Always verify depth-of-cut parameters are within the rated range before engaging the workpiece.
