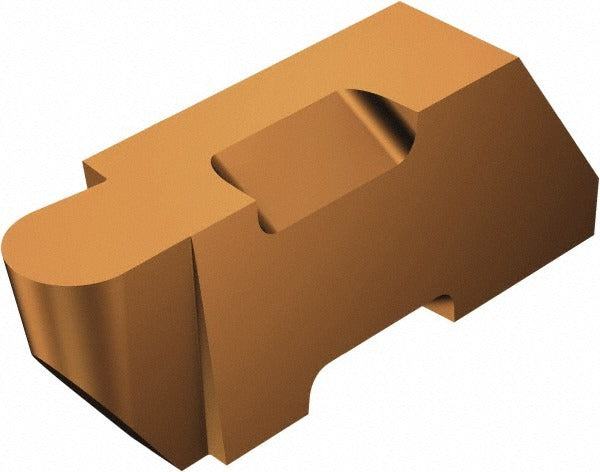

Sandvik Coromant 5753406 Grooving Insert Tialn Top Lok

Product Description

The SANDVIK COROMANT 5753406 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. It features a TiAlN PVD coating for extended tool life under high-heat cutting conditions and carries a positive rake geometry to reduce cutting forces on the workpiece. The insert measures 0.124 inches cutting width with a maximum depth of cut of 0.150 inches, making it well suited for controlled, repeatable groove profiles. Machinists and toolroom technicians working in production turning environments will find this insert fits directly into compatible Top Lok toolholders for quick, secure indexing.

This insert is intended for use in metal-cutting turning applications where consistent groove width and depth control are required. The Top Lok series design is common in both job shop and production turning environments handling steel, stainless, and other metals. With a positive rake and TiAlN finish applied via PVD process, it performs reliably in interrupted cuts and finishing passes. The ISO code TLR-3062R 1125 and catalog reference TLR-3062R 1125 can be used for cross-referencing with Sandvik Coromant toolholder and insert systems.

Key Features

• Solid carbide substrate with TiAlN PVD coating for heat and wear resistance
• 0.124 inch cutting width with a 0.150 inch maximum depth of cut
• Positive rake geometry reduces cutting forces and improves chip flow
• Corner radius of 0.062 inches for consistent groove bottom profile
• Right-hand orientation for standard OD grooving setups
• Multi-use insert compatible with Top Lok series toolholders

Compatibility

Designed for use with Top Lok series toolholders as specified by the manufacturer. ISO code TLR-3062R 1125 and catalog number TLR-3062R 1125 should be used to confirm toolholder compatibility before installation.

Installation Notes

This insert is installed by a qualified machinist or toolroom technician. Power down the machine and engage all safety lockouts before changing inserts. Seat the insert firmly and evenly in the Top Lok pocket and verify clamping torque with the appropriate insert wrench — do not overtighten or use impact tools. Confirm depth of cut and feed rate settings match the insert specifications before resuming operation.
