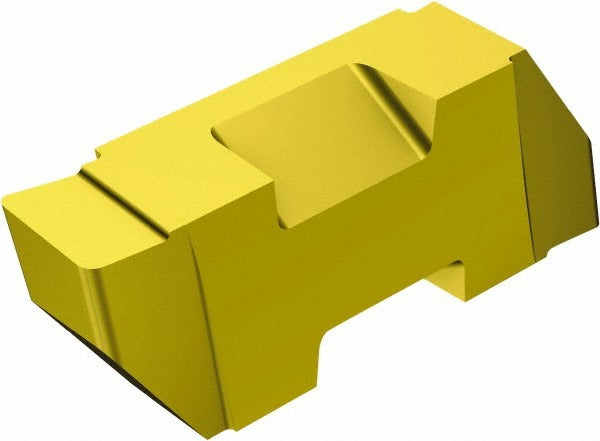

Sandvik Coromant 5753212 Grooving Insert Solid Carbide Top Lok

Product Description

The SANDVIK COROMANT 5753212 is a solid carbide grooving insert in the Top Lok series, designed for precision external grooving operations on CNC lathes and turning centers. Manufactured to grade 2135 with a multi-layer MT-CVD coating of TiCN, Al2O3, and TiN, this right-hand insert delivers a 1.57 mm (0.0620 inch) cutting width and a maximum depth of cut of 2.39 mm (0.0940 inch). The neutral rake geometry with a 10-degree rake angle supports stable cutting performance across a range of workpiece materials. Installed by CNC machinists and toolroom technicians, it seats in compatible Top Lok grooving toolholders.

This insert is suited for external grooving and parting applications in production turning environments, including both job shop and high-volume manufacturing settings. The TLGP-3 insert style seats in size 3 Top Lok toolholders. The 0.19 mm corner radius and cutting height of 8.74 mm (0.3440 inch) make it appropriate for groove widths in the 1/16-inch range. The multi-use designation allows it to serve across varied groove profiles within its depth-of-cut range of 2.00 mm to 3.00 mm (0.0750 inch to 0.1000 inch).

Key Features

• Solid carbide substrate with MT-CVD TiCN, Al2O3, and TiN multilayer coating for wear and heat resistance
• Grade 2135 insert material suited for general-purpose turning applications
• 1.57 mm cutting width with a maximum depth of cut of 2.39 mm
• Neutral rake with 10-degree rake angle for stable, predictable cutting forces
• Corner radius of 0.19 mm for controlled groove edge geometry
• ISO code TLGP-3062R 2135 for direct cross-reference and toolholder matching

Compatibility

Designed for use with size 3 Top Lok series grooving toolholders accepting TLGP-style inserts. ISO code TLGP-3062R 2135 can be used for direct toolholder and catalog cross-reference.

Installation Notes

Insert seating and clamping should be performed with the machine spindle fully stopped and all energy sources locked out per site LOTO procedures. Use the appropriate torx or insert-clamping key specified for the Top Lok toolholder to secure the insert without overtightening. Inspect the insert pocket and clamping surfaces for chips or debris before seating a new insert. Worn or chipped inserts should be indexed or replaced before resuming cuts to avoid toolholder damage.
