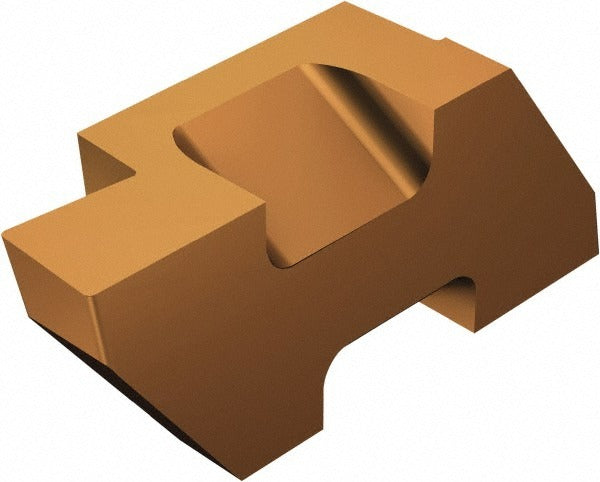

Sandvik Coromant 5753062 Grooving Insert TLG2 1125 Solid Carbide

Product Description

The SANDVIK COROMANT 5753062 is a solid carbide grooving insert in the Top Lok series, designed for precision external grooving and parting operations on CNC lathes and turning centers. Manufactured to grade 1125 with a PVD-applied TiCrAlN and TiAlN dual coating, this right-hand insert delivers a 1.04 mm cutting width and a maximum depth of cut of 1.27 mm. The ISO code designation is TLG-2041R 1125. Machinists and CNC operators install this insert in compatible Top Lok toolholders for high-precision groove profiling where tight width tolerances and surface finish consistency are required.

This insert is suited for grooving applications in residential and industrial CNC turning environments, particularly where small groove widths and shallow depths are specified. The 0.09 mm corner radius supports sharp profile definition on tight-tolerance parts. With a neutral rake geometry and a 10-degree rake angle, it is appropriate for a range of workpiece materials where controlled chip formation is a priority. It is sold individually per package with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate provides rigidity and wear resistance in demanding grooving operations
• PVD-applied TiCrAlN and TiAlN dual coating extends tool life and reduces heat buildup at the cutting edge
• 1.04 mm cutting width with a maximum depth of cut of 1.27 mm for precise, narrow groove profiles
• Neutral rake geometry with a 10-degree rake angle supports stable chip control across compatible materials
• 0.09 mm corner radius enables sharp, well-defined groove edges
• Top Lok series design for secure, repeatable insert indexing in compatible toolholders

Compatibility

Designed for use with SANDVIK COROMANT Top Lok series toolholders accepting insert seat size 2 and compatible with the TLG-2041R 1125 ISO designation. Verify toolholder seat and clamping specifications before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before changing inserts. Use the appropriate torx or clamping key specified by the toolholder manufacturer to seat the insert correctly — do not overtighten the clamping screw. Inspect the insert seat for debris or wear before seating a new insert to ensure proper contact and repeatability.
